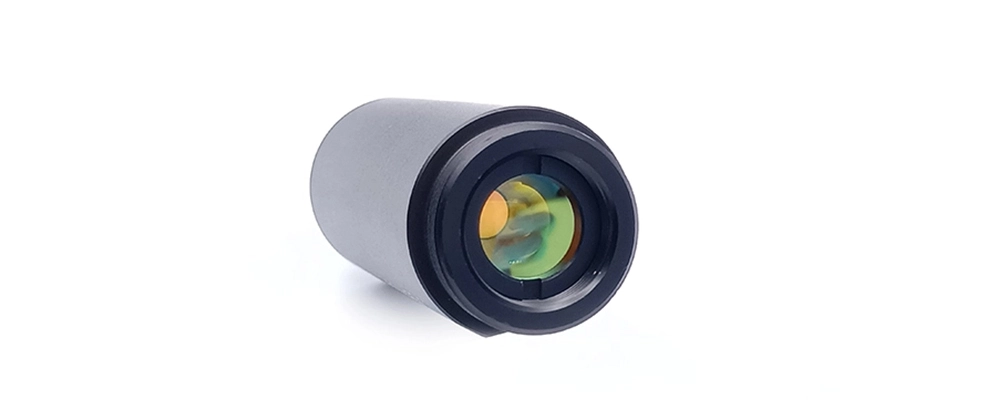

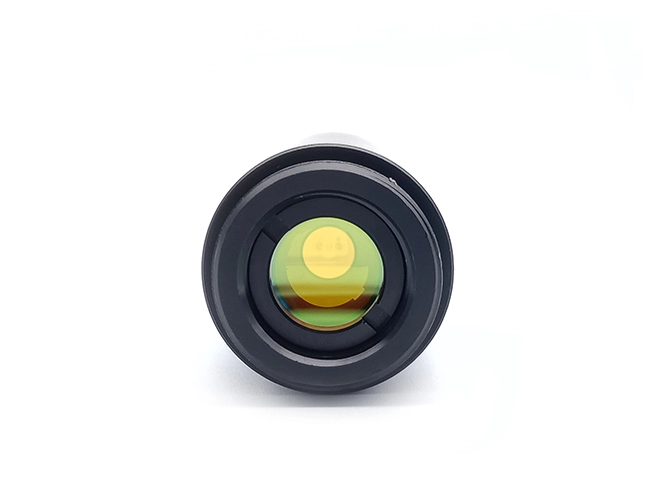

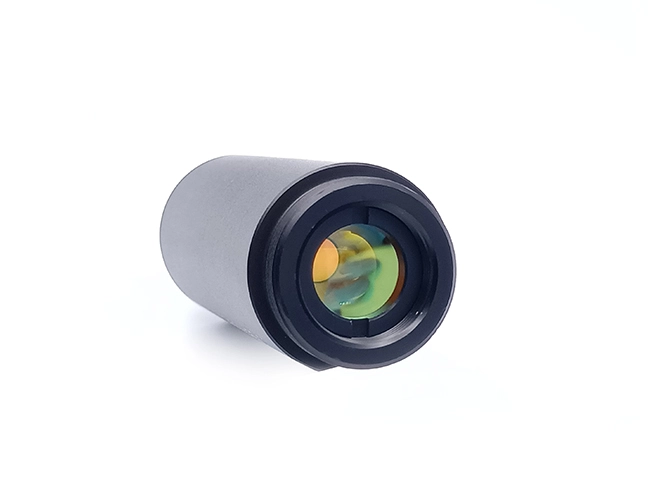

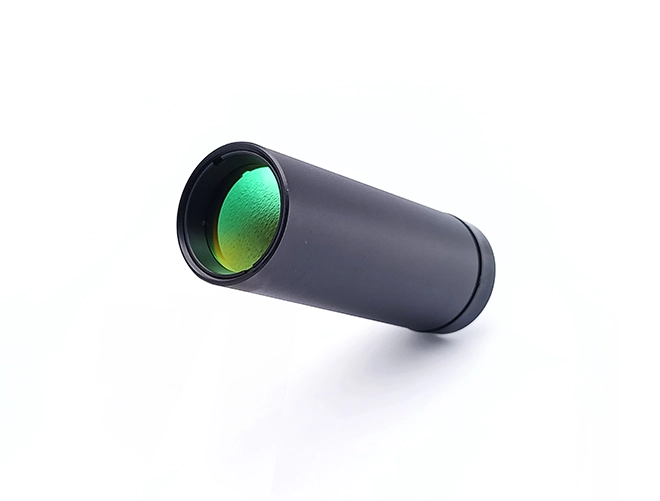

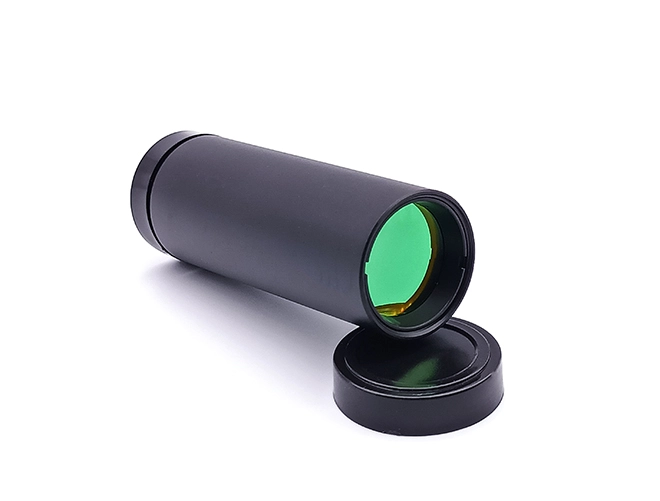

Beam Expander

Name: Beam Expander
Brand: Sichuan Yasi Optics Co.,Ltd.

A laser beam expander is designed to either decreasethe laser's beam spot size at large distances or producea larger collimated output laser beam.

Products

Specifications of Beam Expander

Model No.	Magni fication	Length (mm)	Outer diameter (mm)	Max input beam (mm)	Max output beam (mm)	Connect (mm)
10.6-2Z	2	30	24	7	0.14	□24
10.6- 2ZM	2	30	24	7	14	M22x0.75
10.6-2.5Z	2.5	40	24	5.6	0.14	□24
10.6-2.5ZM	2.5	40	24	5.6	14	M22x0.75
10.6-3Z	3	50	24	5.3	0.16	□24
10.6-3ZM	3	50	24	5.3	16	M22x0.75
10.6-4Z	4	69.7	31	5.75	23	□31
10.6-4ZM	4	69.7	31	5.75	23	M22x0.75
10.6-5Z	5	89.8	31	4.6	23	□33
Customized size can be fabricated according to customer's drawings and samples, pls inquire with us if you are in need.



Magnification: Enlarges laser beams for extended reach and accuracy.



Adjustable: Allows for variable beam expansion for versatile applications.



High Precision: Ensures accurate beam alignment and focusing.



Durable: Resistant to mechanical stress and environmental factors.

Extended Reach: Beam expanders enlarge laser beams, extending their reach for distant targets.
Improved Accuracy: They enhance beam quality, ensuring precise targeting and cutting.
Versatile Applications: Adjustable beam expansion suits various laser systems and tasks.
Durable Construction: Resistant to stress and environmental factors, ensuring long-term use.
