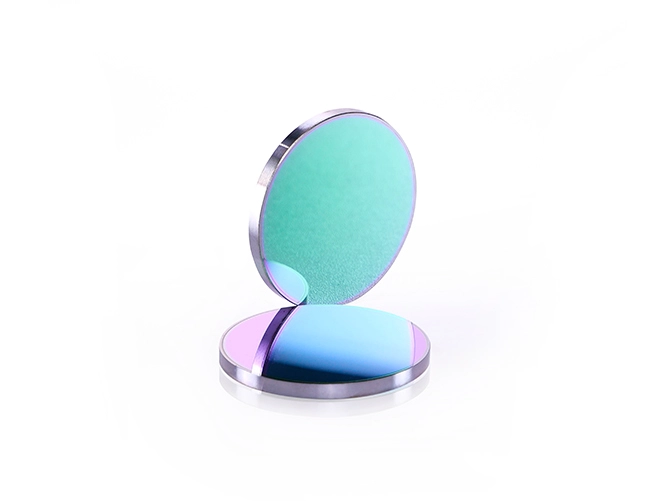

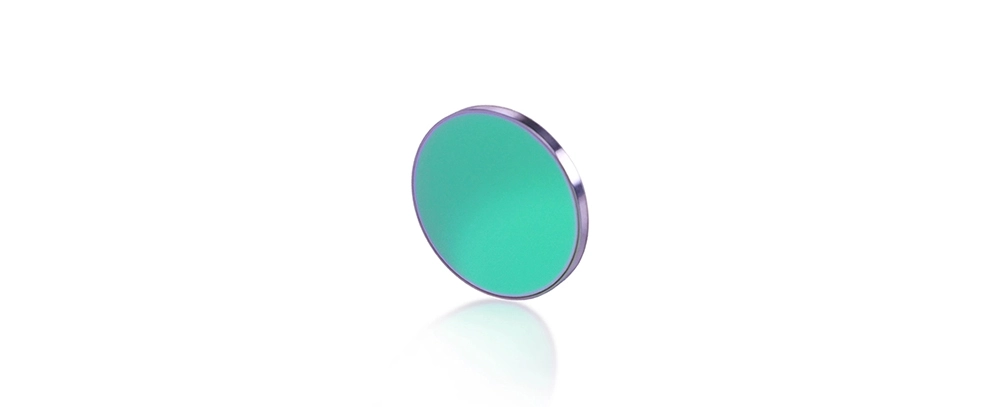

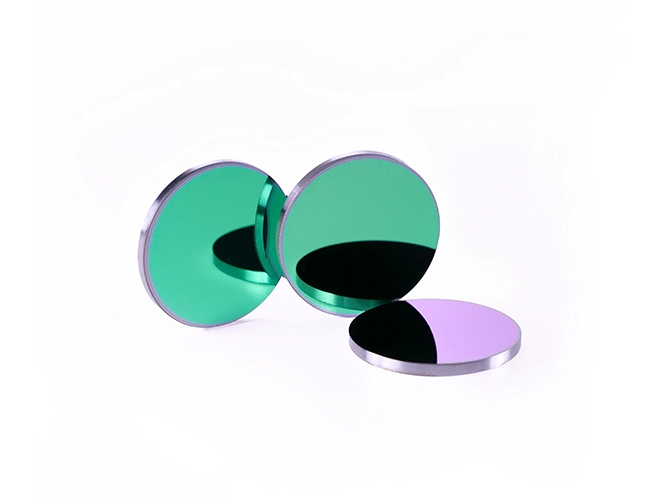

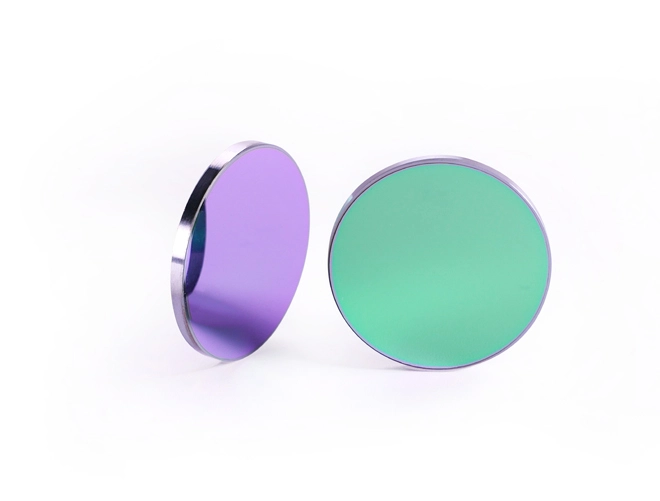

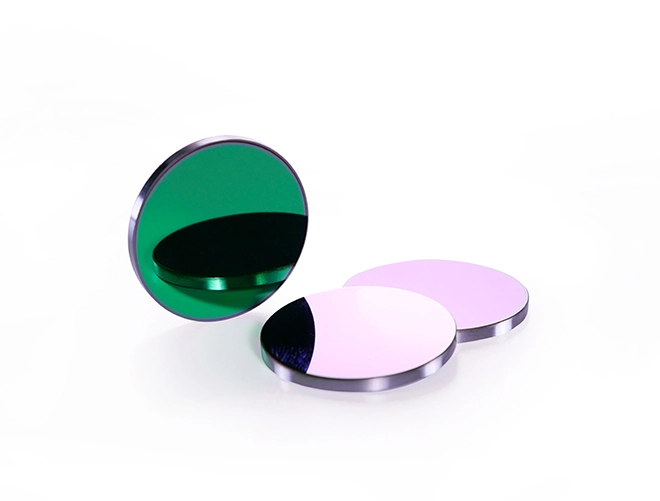

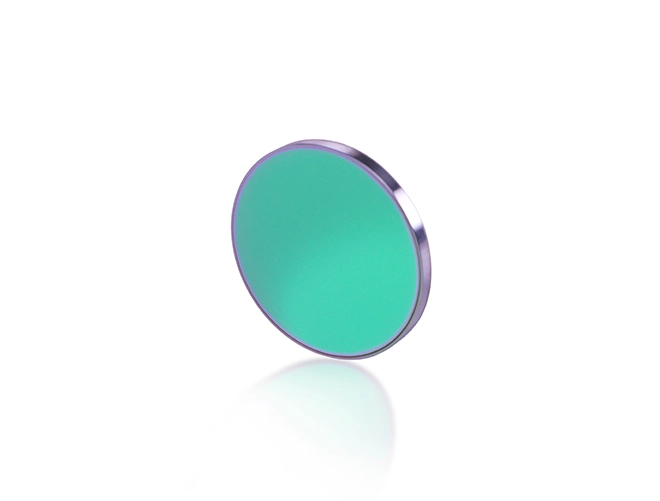

Elevate your optical system with our Infrared Optical Silicon Window Coated Customized. Tailored for infrared imaging, monitoring, inspection, telemetry, and spectroscopy, this window offers exceptional performance. Crafted with precision and coated to your specifications, it ensures optimal transmittance in the infrared spectrum. Trust in its quality and reliability for diverse applications in infrared optics.
| Density(g*cm-3) | 2.33 |
| Melting point(℃) | 1420 |
| Dielectric constant | 13 @10GHZ |
| Thermal expansion coefficient(1/℃) | 4.15*10-6 |
| Bulk modulus (Gpa) | 102 |
| Shear modulus (Gpa) | 79.9 |
| Thermal Conductivity (J/k.m.s) | 163.3 @ 273K |
| Specific Heat(J/g.k) | 0.733 |
| Knoop Hardness (kg/mm²) | 1150 |
| Young's Modulus(Gpa) | 131 |
| Poisson's Ratio | 0.266 |
| Coefficient of elasticity | C11 =167 C11 =65 C11 =80 |
| Transmission wavelength | 1000nm-10000nm 30000nm-300000nm |
| Bulk Absorption Coefficient(1/cm) | 1.6*10-3 @ 3000.nm |
| Thermo-optical coeffecient,dn/dT (1/k) | 1.6*10-4 |
| Name | Index of Refraction (nd) | Abbe Number (vd) | Density(g/cm3) | CTE (x 10-6/°C) | dn/dT (x 10-6/°C) | Knoop Hardness | Properties /Typical Applications |
| Silicon (Si) | 3.422 | N/A | 2.33 | 2.55 | 1.60 | 1150 | Low Cost and Lightweight Used in Spectroscopy,MWIR Laser Systems,THz Imaging |
High Transmission: Optical silicon windows offer high transmission across UV, visible, and IR spectra, crucial for various optical systems.
Thermal Stability: Maintains optical performance in fluctuating temperature environments, ensuring reliable operation.
Scratch Resistance: Durable surface resists scratches and damage, prolonging window lifespan.
Versatility: Suitable for a wide range of applications requiring optical clarity across different spectral ranges.
