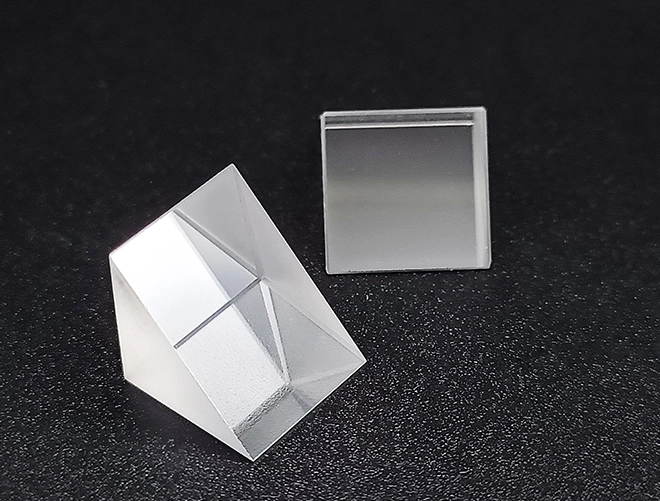

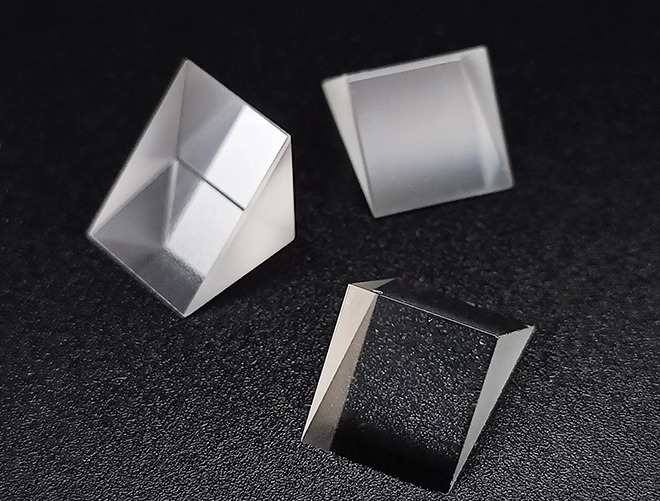

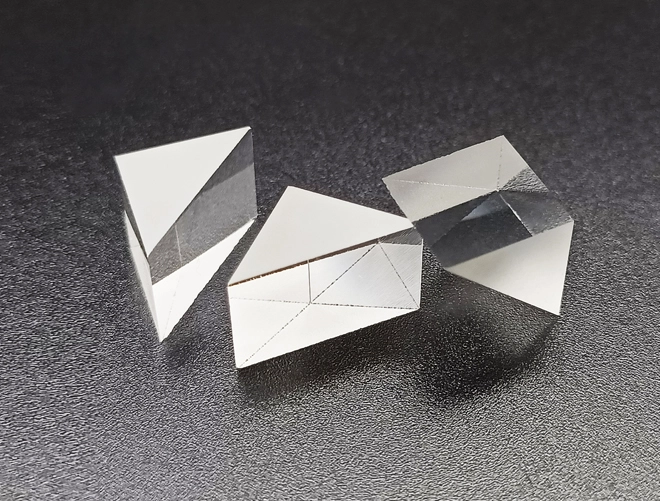

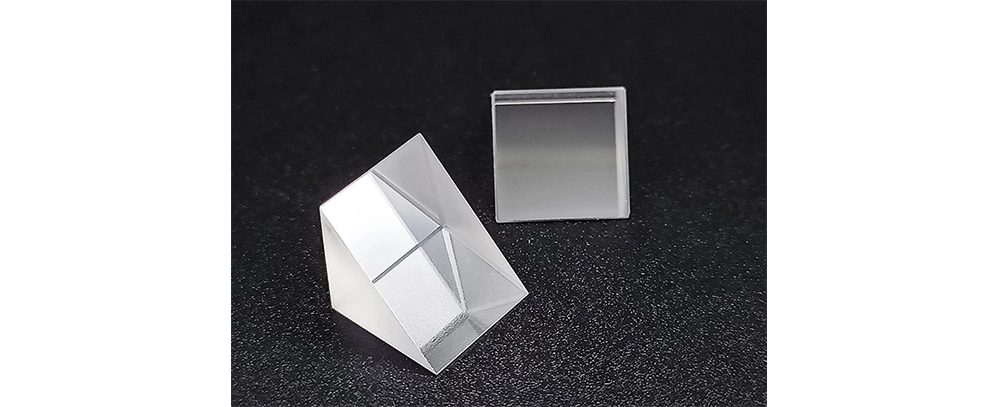

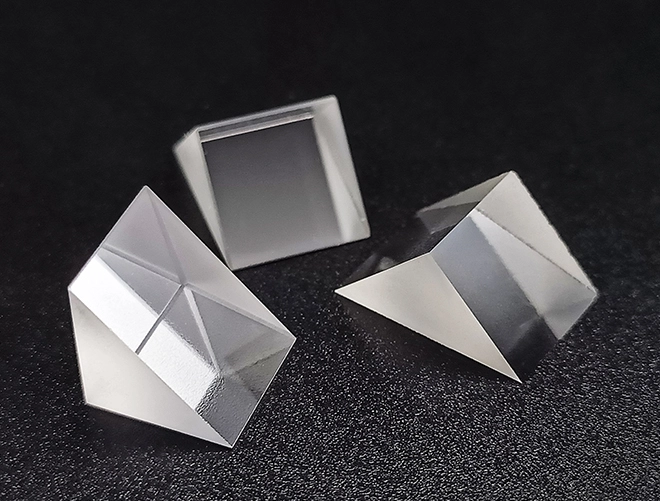

Crafted from high-quality calcium fluoride (CaF2), this prism offers exceptional transmission properties across a broad spectrum of infrared wavelengths.
Whether for infrared imaging, spectroscopy, or other optical systems, our CaF2 prisms deliver superior clarity and precision. Customized to your exact specifications, they ensure seamless integration and optimal performance in your setup.
| Technical Requirement | Commercial Grade | Precision Grade | High Precision |
| Size range | 1-300mm | 2-300mm | 2-300mm |
| Diameter tolerance | ±0.1mm | ±0.025mm | ±0.01mm |
| Thickness tolerance | ±0.1mm | ±0.025mm | ±0.01mm |
| Angle tolerance | ±3′' | ±15'' | ±2'' |
| Surface quality | 60-40 | 40-20 | 20-10 |
| Surface accuracy | 1.0λ | λ/10 | λ/20 |
| Bevelling | 0.1-0.5mm*45° | ||
| Substrate | CaF2 or other optical crystal | ||
Broad Spectral Range: CaF2 prisms transmit from UV to mid-IR wavelengths, suitable for a wide range of optical applications.
Low Dispersion: Minimizes chromatic aberration, ensuring high-quality imaging and accurate light dispersion.
High Transmission: Excellent light transmission allows for clear and sharp imaging in various optical systems.
Chemical Resistance: As a subcategory of CaF2 Optics, it has excellent chemical stability and mechanical strength, and is suitable for use in harsh environments.
The larger the quantity, the more preferential the CaF2 Windows Price.
