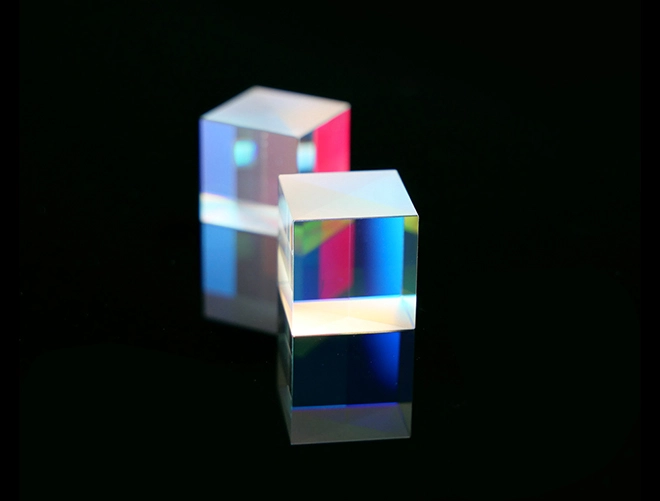

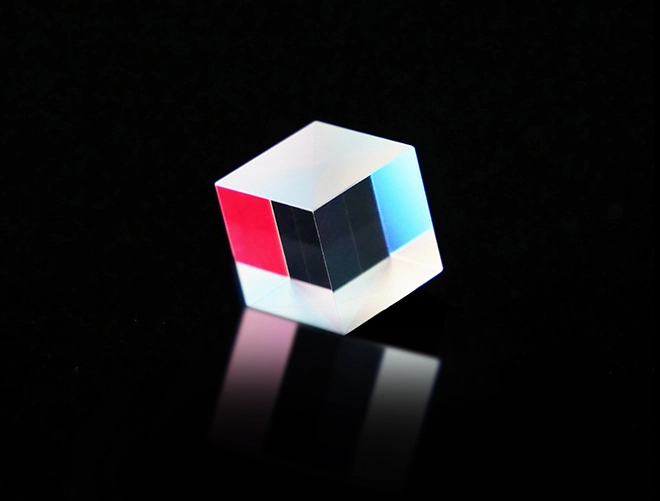

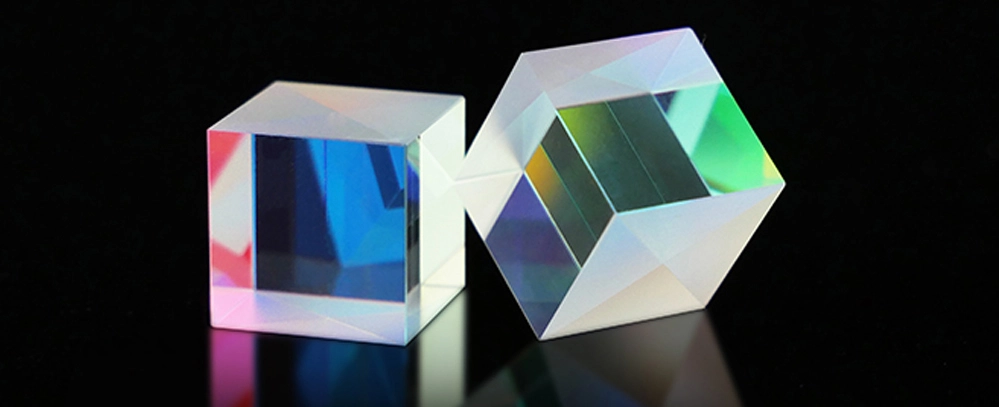

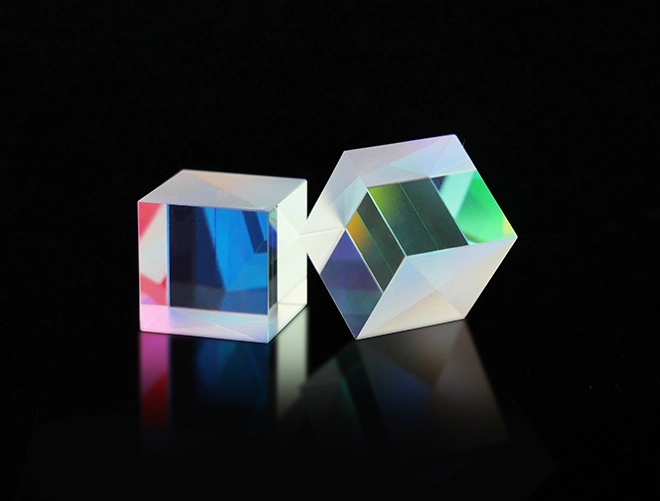

This non-polarizing beam splitter cube is coated with a broadband anti-reflection coating and a spectroscopic coating, whose transmission wavelength is 400-700 nm. Its split ratio is 10:90, 30:70, 50:50, 70:30 or 90:10, and its beam deflection can be minimized after optimizing the design. The beam splitter cube is composed to two prisms, the reflecting surface of a single prism can avoid ghosting, and the inclined plane of one prism is coated with a dielectric light-splitting film. Finally, two prisms are glued with photo-sensitive glue.
| Technical Requirement | Commercial Grade | Precision Grade | High Precision |
| Size range | 1-600mm | 2-600mm | 2-600mm |
| Dimensional tolerance | ±0.1mm | ±0.025mm | ±0.01mm |
| Thickness tolerance | ±0.1mm | ±0.025mm | ±0.01mm |
| Angle tolerance | ±1'' | ±30'' | ±5'' |
| Surface quality | 60-40 | 40-20 | 20-10 |
| Surface accuracy | 1.0λ | λ/10 | λ/20 |
| Bevelling | 0.1-0.5mm*45° | ||
| Substrate | H-K9L or other optical glass | ||
| Size | Length(mm) | Width(mm) | Height(mm) |
| 5 | 5 | 5 | |
| 10 | 10 | 10 | |
| 12.7 | 12.7 | 12.7 | |
| 20 | 20 | 20 | |
| 25.4 | 25.4 | 25.4 | |
| 30 | 30 | 30 | |
| 38.1 | 38.1 | 38.1 | |
| 50.8 | 50.8 | 50.8 | |
| 100 | 100 | 100 | |
High Precision: Provides accurate splitting of light beams for precise optical measurements.
Enhanced Coating: Features a high-quality coating for efficient beam splitting and minimal light loss.
Durable Construction: Made from robust materials, ensuring longevity and reliability in various conditions.
Versatile Application: Suitable for a wide range of optical systems requiring beam splitting.
Efficient Performance: Maintains consistent performance over time, reducing the need for frequent adjustments.
Cost-Effective: Offers a cost-effective solution for optical setups requiring beam splitting.
