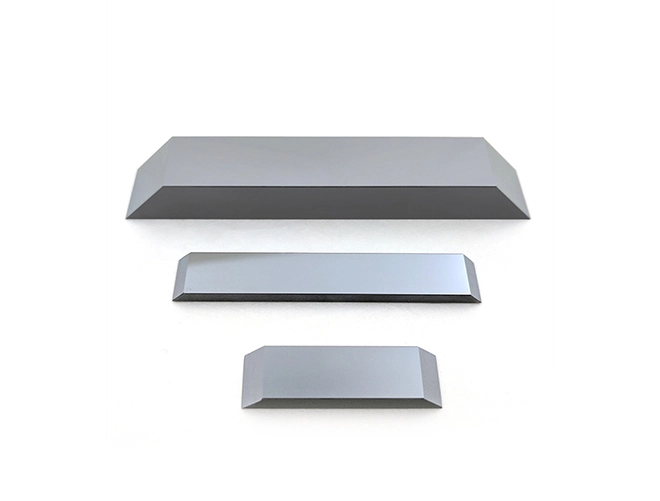

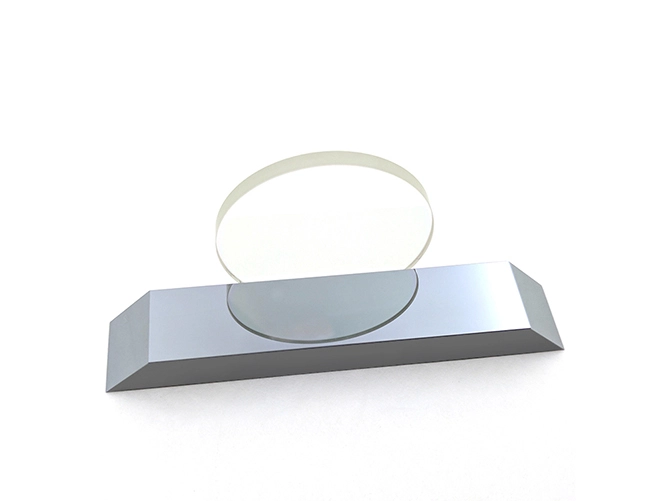

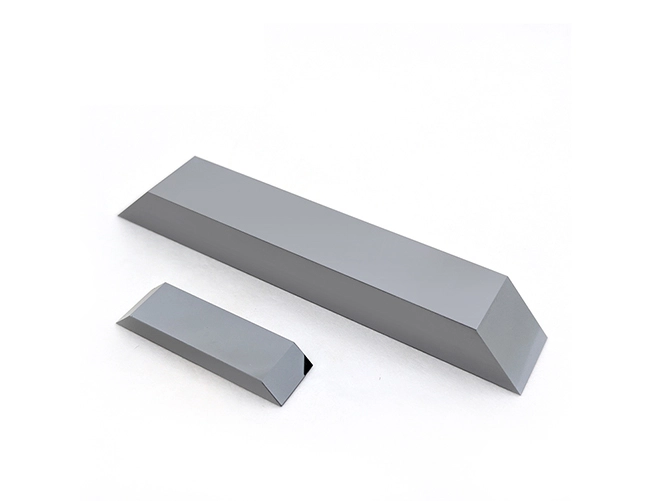

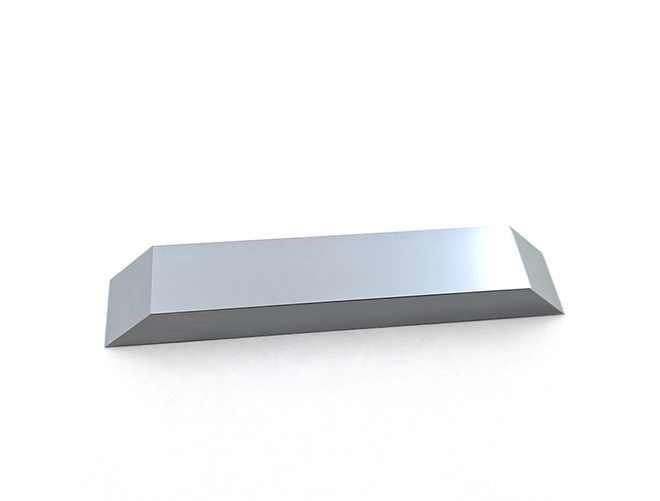

Revolutionize your infrared spectroscopy with our Infrared Optical Silicon ATR Prism Coated Customized. Utilizing laser absorption spectrum technology, this prism enables fast and efficient qualitative or quantitative testing with minimal sample preparation. Customized to your coating needs, it ensures accurate results in infrared optical systems. Explore the possibilities of infrared analysis with our customized ATR prism solution.
| Density(g*cm-3) | 2.33 |
| Melting point(℃) | 1420 |
| Dielectric constant | 13 @10GHZ |
| Thermal expansion coefficient(1/℃) | 4.15*10-6 |
| Bulk modulus (Gpa) | 102 |
| Shear modulus (Gpa) | 79.9 |
| Thermal Conductivity (J/k.m.s) | 163.3 @ 273K |
| Specific Heat(J/g.k) | 0.733 |
| Knoop Hardness (kg/mm²) | 1150 |
| Young's Modulus(Gpa) | 131 |
| Poisson's Ratio | 0.266 |
| Coefficient of elasticity | C11 =167 C11 =65 C11 =80 |
| Transmission wavelength | 1000nm-10000nm 30000nm-300000nm |
| Bulk Absorption Coefficient(1/cm) | 1.6*10-3 @ 3000.nm |
| Thermo-optical coeffecient,dn/dT (1/k) | 1.6*10-4 |
| Name | Index of Refraction (nd) | Abbe Number (vd) | Density(g/cm3) | CTE (x 10-6/°C) | dn/dT (x 10-6/°C) | Knoop Hardness | Properties /Typical Applications |
| Silicon (Si) | 3.422 | N/A | 2.33 | 2.55 | 1.60 | 1150 | Low Cost and Lightweight Used in Spectroscopy,MWIR Laser Systems,THz Imaging |
Efficient Light Confinement: Silicon ATR prisms efficiently redirect and confine infrared light, enhancing signal detection sensitivity in spectroscopy and sensing applications.
Infrared Transparency: High transparency in the infrared spectrum enables precise thermal imaging and sensing.
Durable: Resistant to mechanical stress and environmental factors, ensuring long-term reliability.
Broad Spectral Range: Transmits wavelengths from UV to IR, suitable for diverse optical applications.
