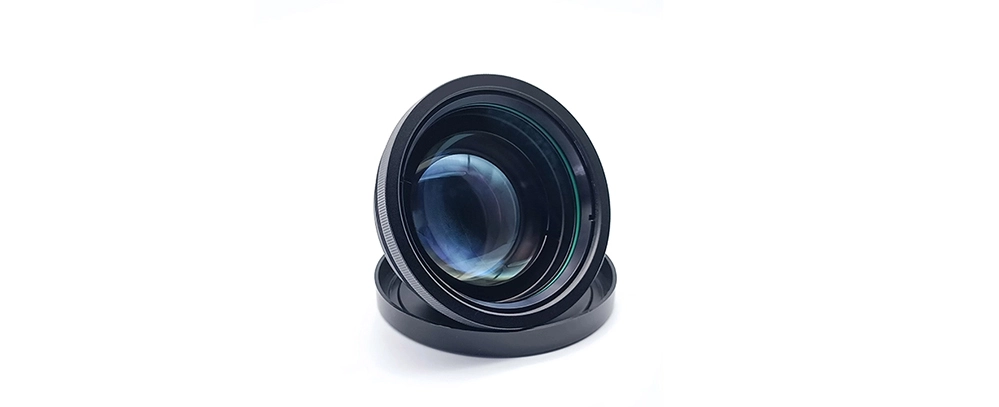

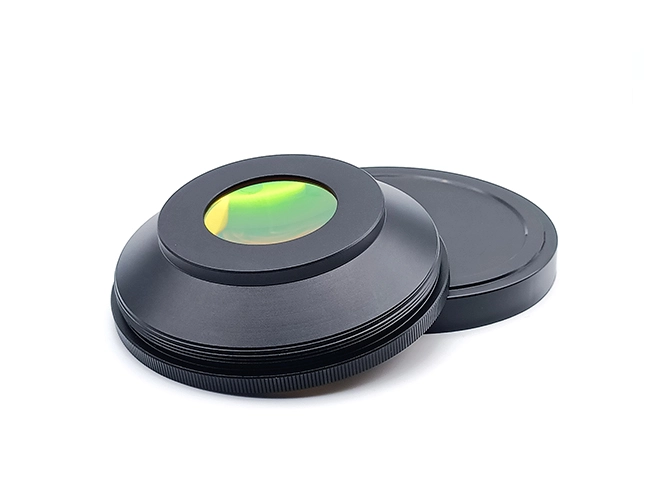

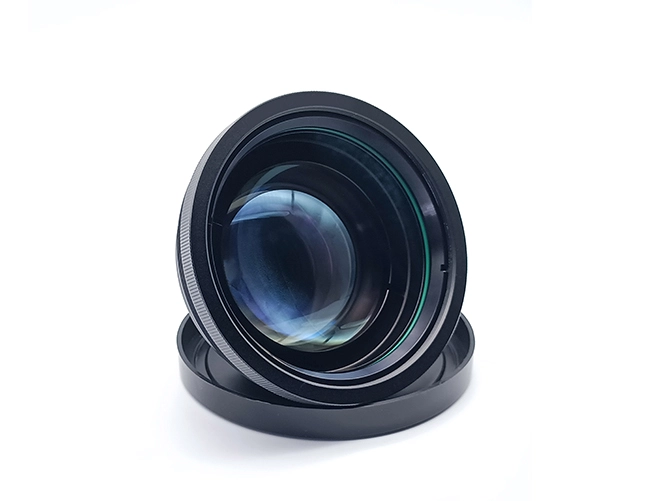

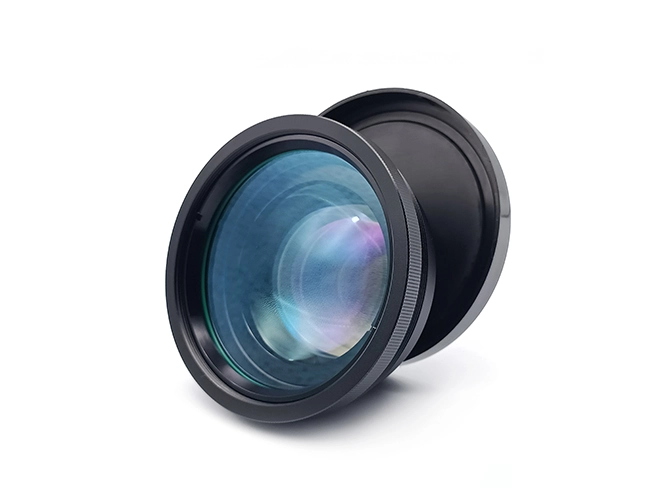

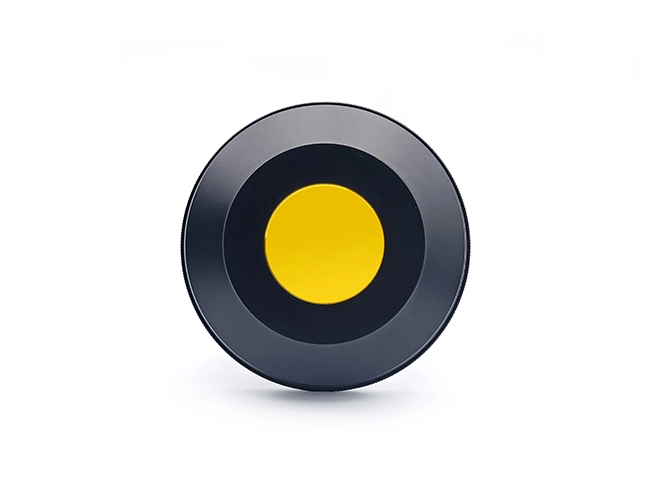

Flat field scanning lens, also known as F-thetaens, are the standard lenses for galvo-scanner-based laser marking, engraving, and cutting systems
| Working wavelength (μm) | Scan field | Working distance (mm) | Input beam diameter (mm) | Max scan angle(°) | |
| Square (mm) | Round (mm) | ||||
| 10.6/10 | 36x36 | 51 | 72 | 11 | 15 |
| 10.6 | 60x60 | 86 | 97 | 11 | 20 |
| 10.6 | 80x80 | 113 | 102 | 11 | 25 |
| 10.6 | 90x90 | 128 | 119 | 11 | 25 |
| 10.6 | 110x110 | 156 | 151 | 11 | 25 |
| 10.6 | 110x110 | 156 | 146 | 14 | 30 |
| 10.6 | 125x125 | 177 | 175 | 11 | 25 |
| 10.6 | 1 75x1 75 | 247 | 252 | 11 | 25 |
| 10.6 | 200x200 | 283 | 294 | 11 | 25 |
| 10.6 | 250x250 | 352 | 371 | 11 | 25 |
| 10.6 | 300x300 | 424 | 447 | 11 | 25 |
Distortion Correction: F-theta scan lenses correct distortion, ensuring precise and accurate laser scanning over the entire field.
High Precision: These lenses offer exceptional precision in laser positioning and imaging, crucial for demanding applications.
Versatile Compatibility: Compatible with various laser systems and wavelengths, providing versatility for different scanning needs.
Durability: Resistant to mechanical stress and environmental factors, F-theta scan lenses offer long-lasting performance and reliability.
