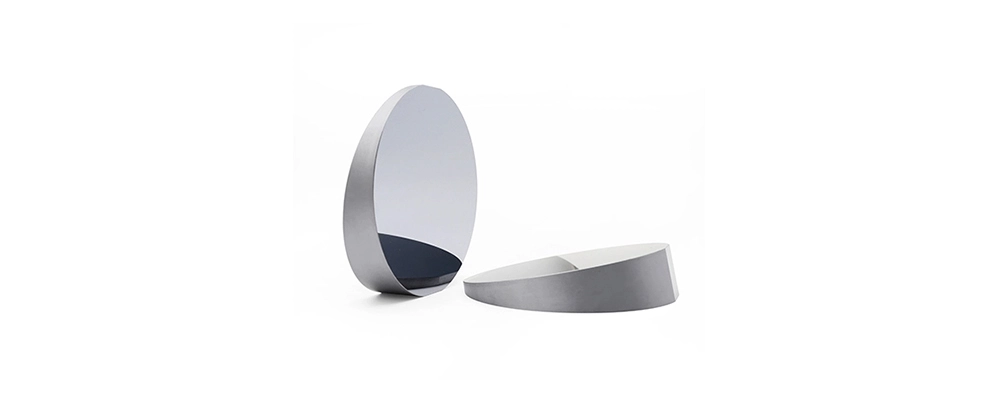

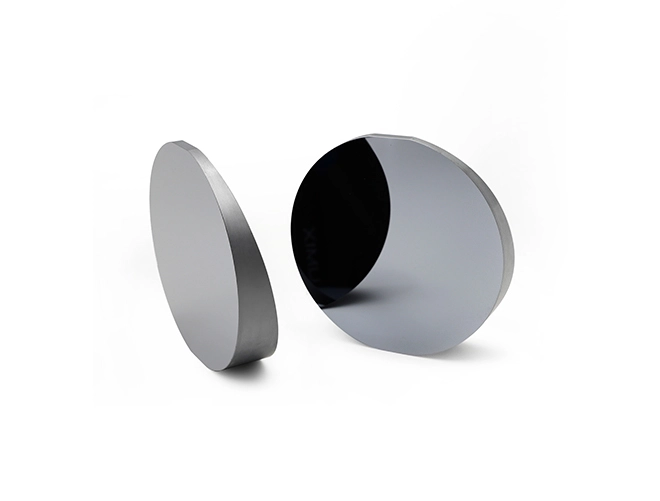

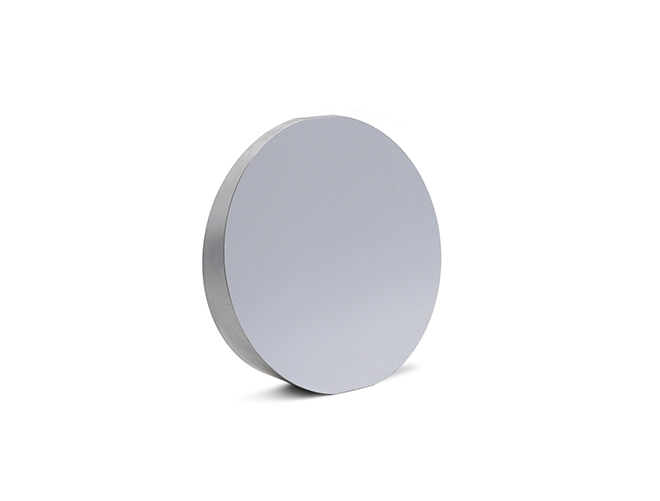

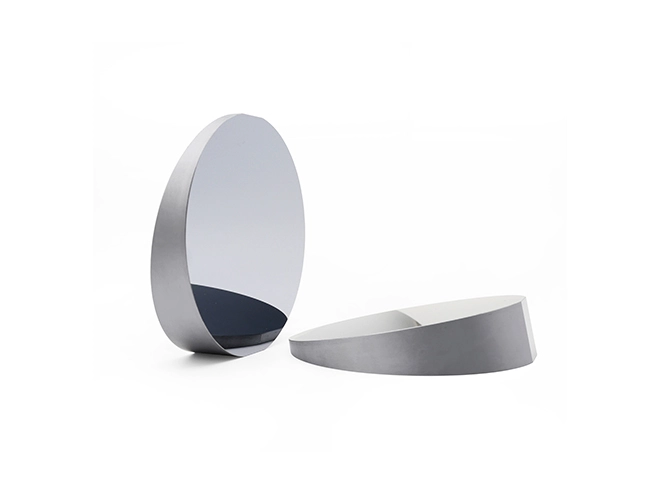

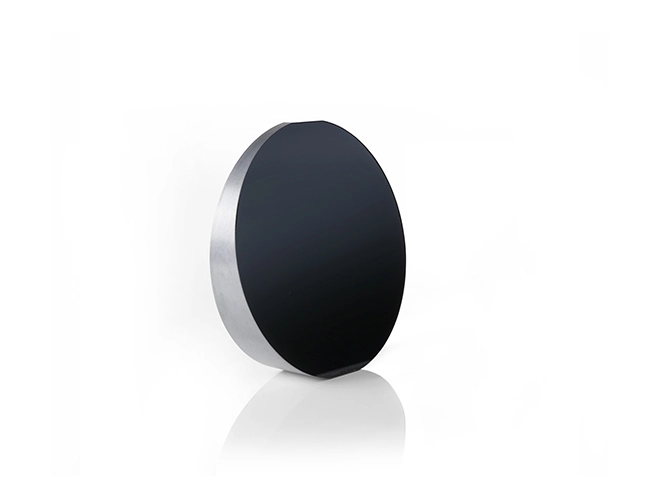

Infrared Optical Germanium Wedge Prism AR Coated Customized

Designed for precise light deflection and laser beam steering applications. This prism features plane inclined surfaces, effectively deflecting light towards its thicker portion. It can be used individually to deflect a beam at a specific angle, or in pairs to form an anamorphic prism assembly, which corrects the elliptical shape of a laser beam. Made from high-quality germanium and AR coated to minimize reflections and enhance performance, this customized wedge prism is ideal for a variety of advanced optical applications. Rely on our expertise for high-performance, tailored infrared optical solutions.

Products

Specifications of Infrared Optical Germanium Wedge Prism AR Coated Customized


Density(g*cm-3)5.33
Melting point(℃)936
Dielectric constant static/hyperframes16.6 @9.37GHZ(300K)
Thermal expansion coefficient(1/℃)6.1*10-6 @ 298K
Bulk modulus (Gpa)77.2
Shear modulus (Gpa)67
Thermal Conductivity   (J/k.m.s)58.61 @ 293K
Specific Heat(J/g.k)0.31
Knoop Hardness  (kg/mm²)780
Young's Modulus(Gpa)102.7
Poisson's Ratio0.28
Coefficient of elasticityC11 =129      C11 =48.3
C11 =67.1
Transmission wavelength2000nm—12000nm
Bulk Absorption Coefficient(1/cm)1.3*10-3@3800nm
3*10-2@10600nm
Thermo-optical  coeffecient,dn/dT  (1/k)4.08*10-4 @ 10600nm


Features of Infrared Optical Germanium Wedge Prism AR Coated Customized

Precise Light Deviation: Controls beam direction with high accuracy.
Infrared Transparency: High transmittance in the infrared spectrum.
Durable: Resistant to mechanical stress and environmental factors.
Broad Spectral Range: Transmits from mid-IR to far-IR wavelengths.

Advantages of Infrared Optical Germanium Wedge Prism AR Coated Customized

Advantages of Infrared Optical Germanium Wedge Prism AR Coated Customized
  • Precise Beam Control: Germanium wedge prisms offer precise control over beam direction, crucial for alignment and calibration applications.

  • Infrared Transparency: High transparency in the infrared spectrum enables accurate infrared imaging and sensing.

  • Durable: Resistant to mechanical stress and environmental factors, ensuring long-term reliability.

  • Broad Spectral Range: Transmits wavelengths from mid-IR to far-IR, suitable for diverse optical systems.
