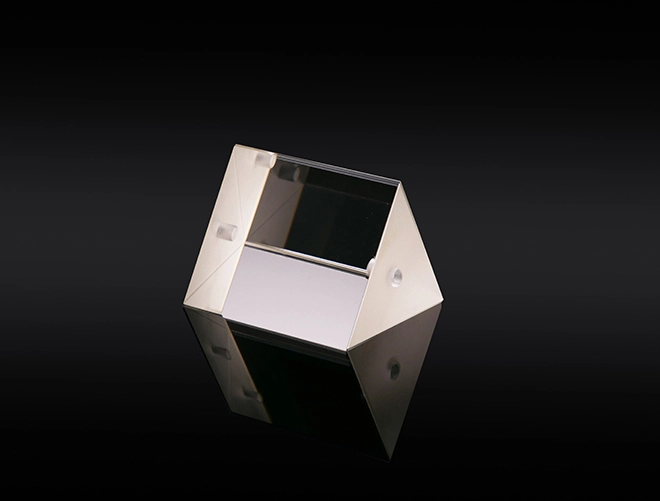

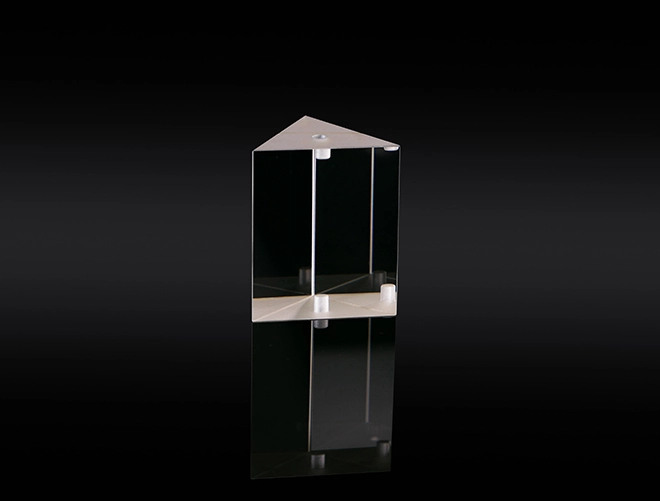

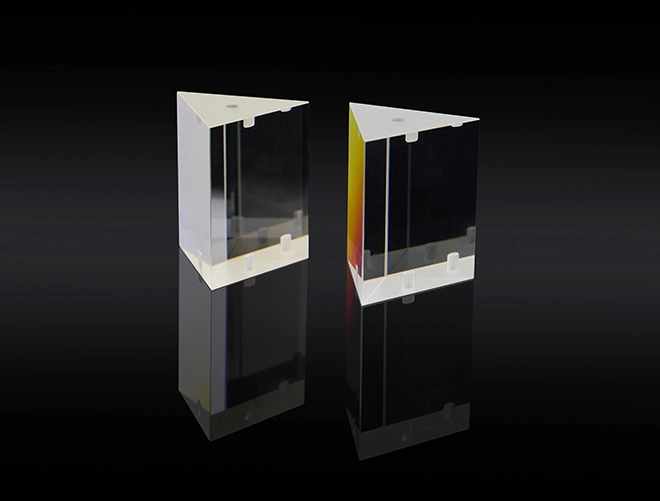

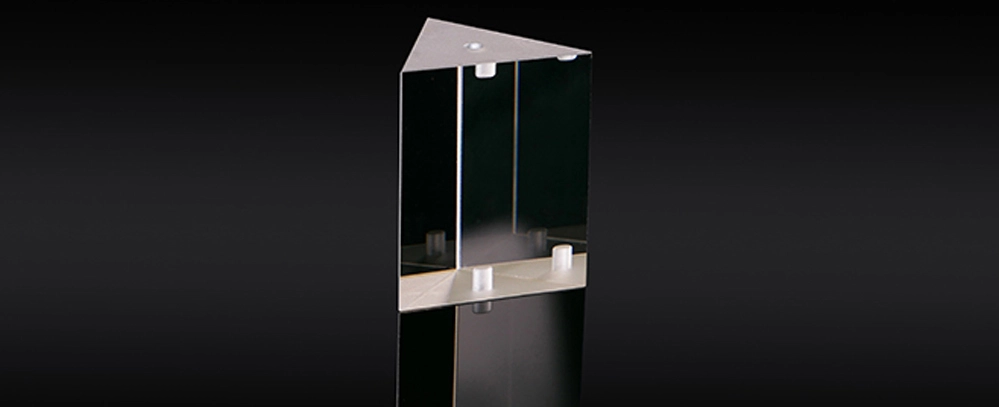

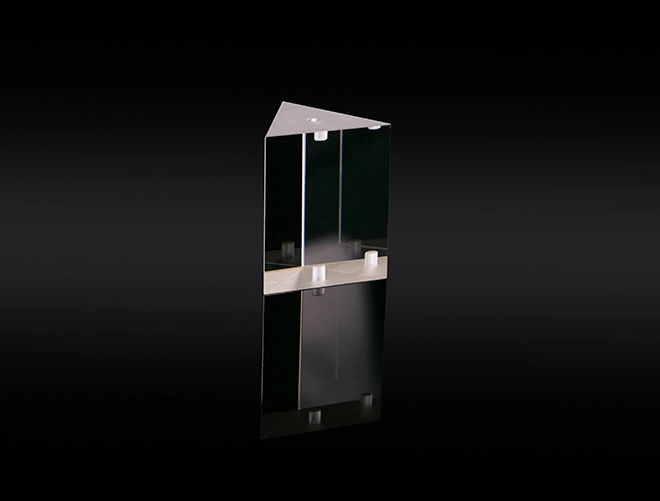

Made from high-quality fused silica, this prism boasts exceptional thermal stability and low thermal expansion, ensuring superior performance in varying environments. Each prism is custom-drilled to meet specific design requirements and is coated with advanced optical coatings to enhance light transmission and minimize reflection. Ideal for scientific research, laser systems, and high-tech instrumentation, our customized prisms offer unparalleled clarity and reliability. Trust our expertise in delivering optical solutions that meet the highest standards of excellence.
| Technical Requirement | Commercial Grade | Precision Grade | High Precision |
| Size range | 1-300mm | 2-300mm | 2-300mm |
| Diameter tolerance | ±0.1mm | ±0.025mm | ±0.01mm |
| Thickness tolerance | ±0.1mm | ±0.025mm | ±0.01mm |
| Angle tolerance | ±5′ | ±30'' | ±2' |
| Surface quality | 60-40 | 40-20 | 20-10 |
| Surface accuracy | 1.0λ | λ/10 | λ/20 |
| Coating | AR coating or reflecting coating | ||
| Bevelling | 0.1-0.5mm*45° | ||
| Substrate | Optical glass/glass ceramics /Fused silica | ||
The drilled prism offers several advantages, including the ability to allow light to pass through, enabling versatile applications in optical systems. Its precise positioning and alignment capabilities make it ideal for directing and manipulating light in a controlled manner. Additionally, the compatibility with mounting hardware ensures ease of integration into various setups, enhancing its usability. The durable optical material further contributes to its reliability and longevity in practical use. These features collectively make the drilled prism a valuable component in optical instrumentation, laser systems, and other applications requiring precise light management.
