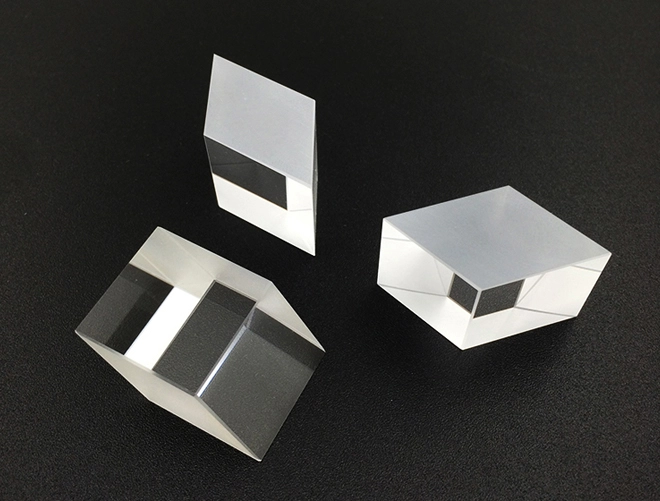

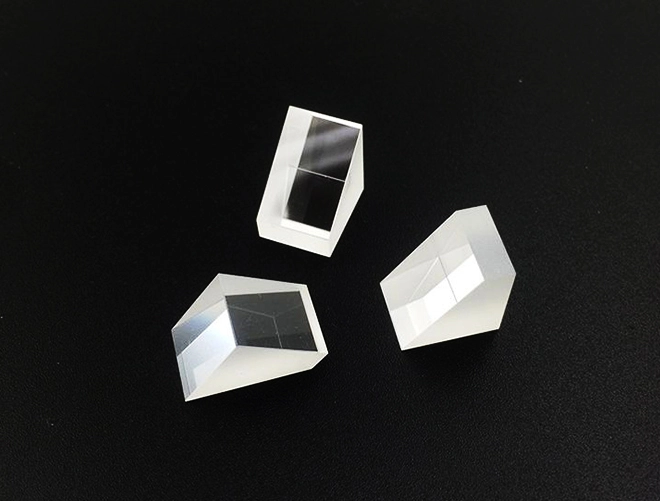

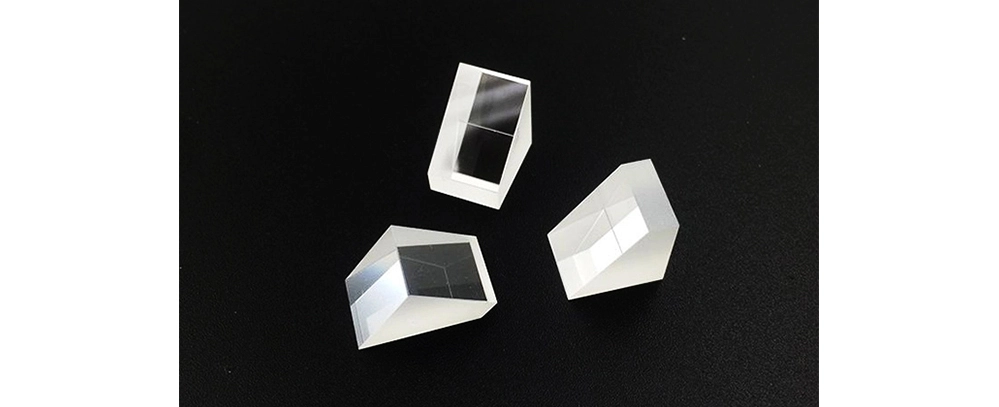

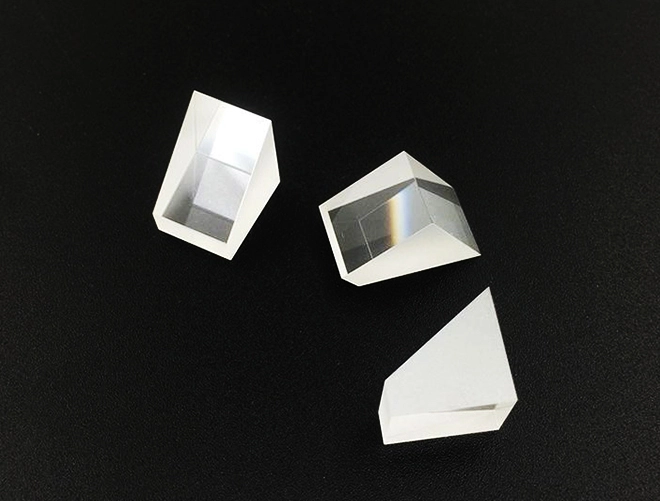

Discover unparalleled precision with our Infrared Optical Sapphire Al2O3 Glass Prism Customized to your exact specifications. Ideal for a myriad of optical systems including infrared imaging, monitoring, inspection, telemetry, and spectroscopy, this prism ensures exceptional clarity and accuracy. Crafted with high-quality Sapphire Al2O3 glass, it offers superior performance and durability in demanding environments.
Whether you require standard sizes or custom dimensions, our sales team is ready to assist you with inquiries. Elevate your optical setup with the customized sapphire glass lens, delivering unmatched reliability and versatility in infrared light applications.
| Name | Index of Refraction (nd) | Abbe Number (vd) | Density(g/cm3) | CTE (x 10-6/°C) | dn/dT (x 10-6/°C) | Knoop Hardness | Properties /Typical Applications |
| Sapphire | 1.768 | 72.2 | 3.97 | 5.3 | 13.1 | 2200 | Very Durable and Good Transmission in IR Used in IR Laser Systems,Spectroscopy,and Rugged Environmental Equipment |
| Technical Requirement | Commercial Grade | Precision Grade | High Precision |
| Size range | 1-300mm | 2-300mm | 2-300mm |
| Dimensional tolerance | ±0.1mm | ±0.025mm | ±0.01 mm |
| Thickness tolerance | ±0.1mm | ±0.025mm | ±0.01mm |
| Parallelism | ±3' | ±30'' | ±5' |
| Surface quality | 60-40 | 40- 20 | 20-10 |
| Surface accuracy | 1.0λ | λ10 | λ/20 |
| Bevelling | 0.1 -0.5mm*45° | ||
| Substrate | Sapphire |
Precision Beam Control: Sapphire glass prisms offer precise light deviation, crucial for accurate beam steering and alignment in optical systems.
High Hardness: Extremely scratch-resistant, ensuring long-lasting optical clarity in harsh environments.
Infrared Transparency: High transparency in the infrared spectrum enables applications in thermal imaging and sensing.
Durable Construction: Resistant to mechanical stress and environmental factors, ensuring long-term reliability.
