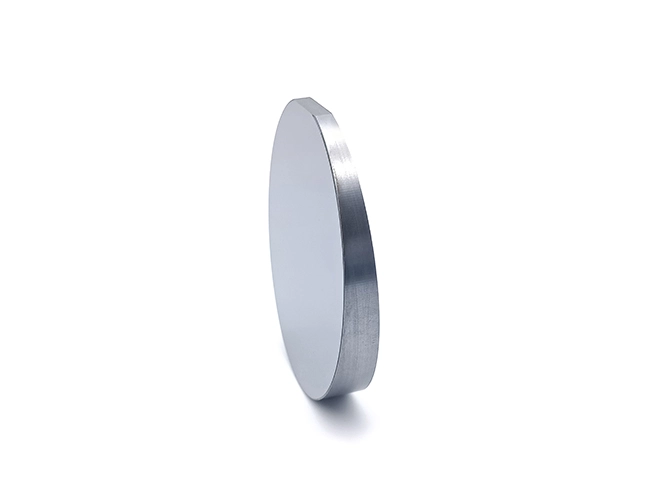

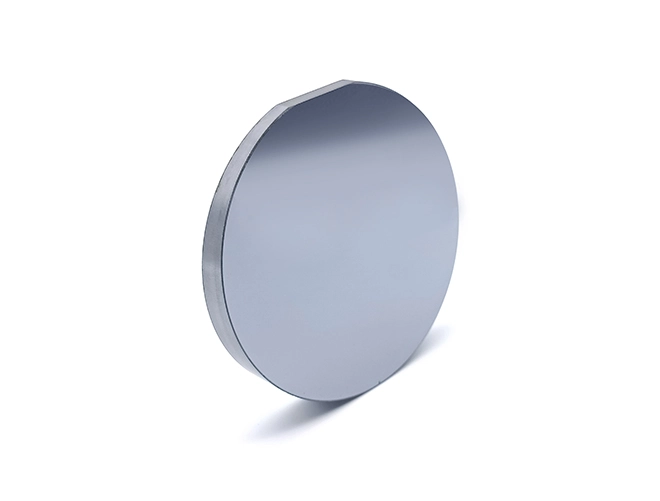

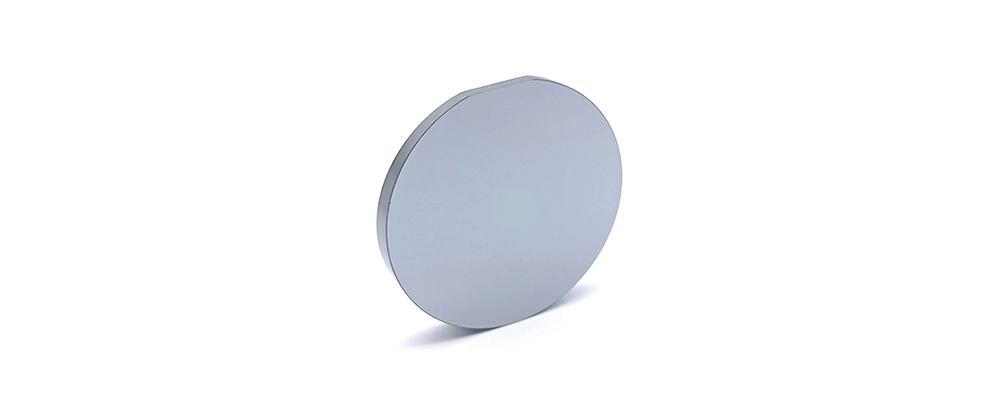

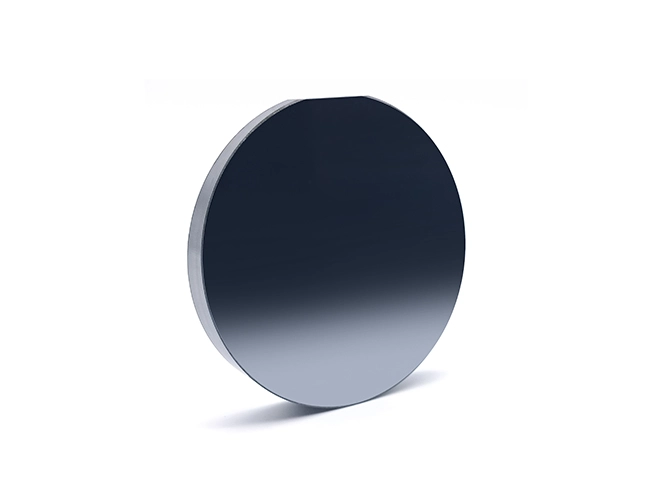

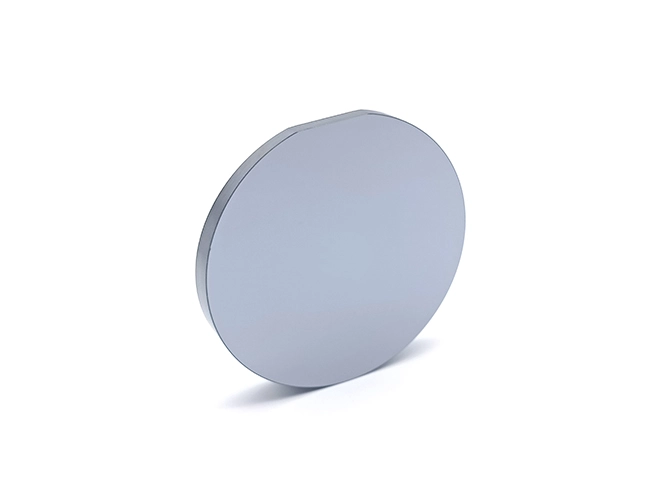

Infrared Optical Silicon Wedge Prism Coated Customized

Designed with plane inclined surfaces, this prism deflects light precisely, making it ideal for laser beam steering applications. Customized to your coating requirements, it ensures optimal performance in infrared optical systems. Whether used individually or in pairs, our wedge prism offers versatility and reliability in your applications.


Products

Specifications of Infrared Optical Silicon Wedge Prism Coated Customized



Density(g*cm-3)2.33
Melting point(℃)1420
Dielectric constant13 @10GHZ
Thermal expansion coefficient(1/℃)4.15*10-6
Bulk modulus (Gpa)102
Shear modulus (Gpa)79.9
Thermal Conductivity   (J/k.m.s)163.3 @ 273K
Specific Heat(J/g.k)0.733
Knoop Hardness  (kg/mm²)1150
Young's Modulus(Gpa)131
Poisson's Ratio0.266
Coefficient of elasticityC11 =167    C11 =65
C11 =80
Transmission wavelength1000nm-10000nm 30000nm-300000nm
Bulk Absorption Coefficient(1/cm)1.6*10-3 @ 3000.nm
Thermo-optical  coeffecient,dn/dT  (1/k)1.6*10-4


NameIndex of Refraction (nd) Abbe Number (vd)Density(g/cm3)CTE
(x 10-6/°C)
dn/dT
(x 10-6/°C)
Knoop HardnessProperties /Typical Applications
Silicon  (Si)3.422N/A2.332.551.601150Low Cost and Lightweight
Used in Spectroscopy,MWIR Laser Systems,THz Imaging


Features of Infrared Optical Silicon Wedge Prism Coated Customized

Precise Light Deviation: Controls beam direction with high accuracy.
Infrared Transparency: High transmittance in the infrared spectrum.
Durable: Resistant to mechanical stress and environmental factors.
Broad Spectral Range: Transmits from UV to IR wavelengths.

Advantages of Infrared Optical Silicon Wedge Prism Coated Customized

Advantages of Infrared Optical Silicon Wedge Prism Coated Customized
  • Beam Steering Precision: Silicon wedge prisms offer precise control over beam direction, crucial for alignment and calibration in optical systems.

  • Infrared Transparency: High transparency in the infrared spectrum enables accurate thermal imaging and sensing applications.

  • Durable Construction: Resistant to mechanical stress and environmental factors, ensuring long-lasting performance.

  • Broad Spectral Range: Transmits wavelengths from UV to IR, suitable for diverse optical applications.
