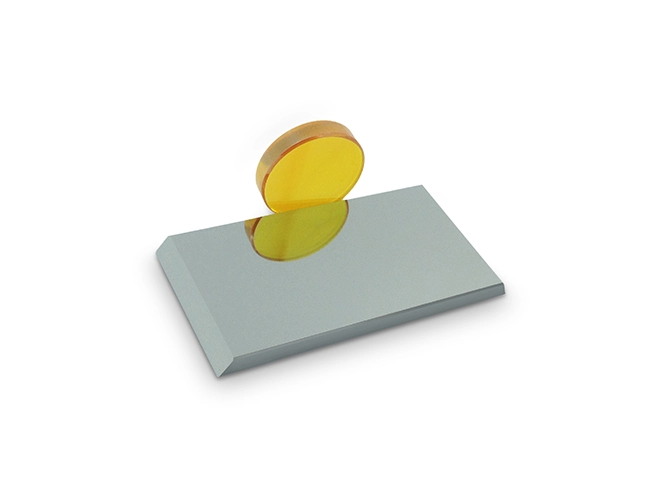

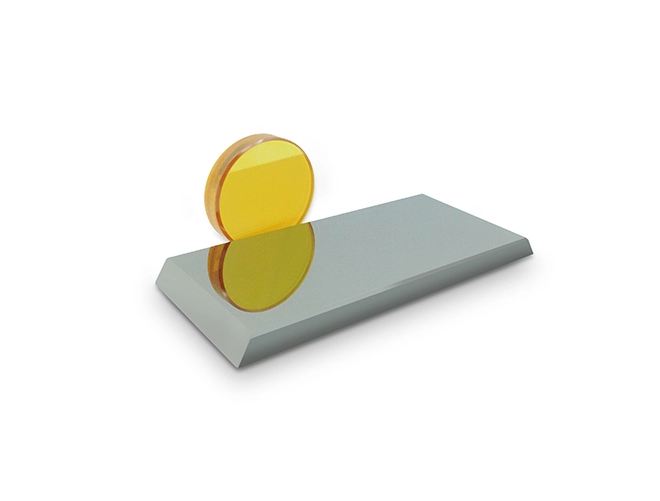

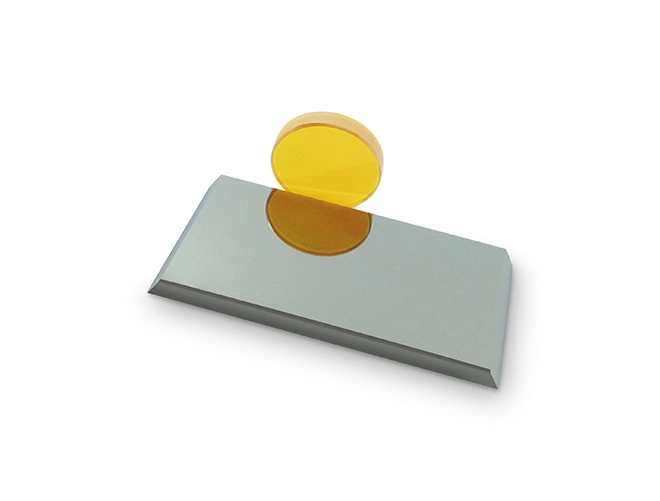

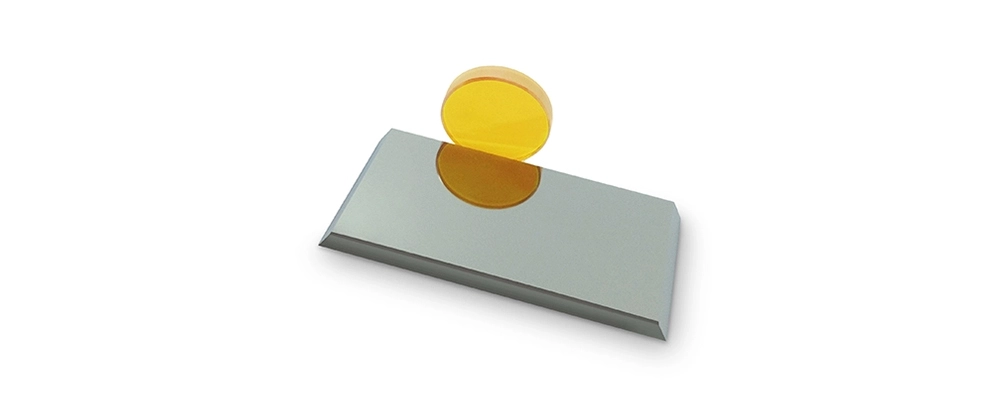

Infrared Optical Germanium ATR Prism AR Coated Customized

This ATR (Attenuated Total Reflection) prism, crafted from high-quality germanium, excels in the infrared absorption spectrum, enabling precise and efficient analysis. AR coated to enhance transmission and reduce reflections, it ensures optimal performance in demanding environments.

Using the laser absorption spectrum of ATR prism is a fast developing techonoloyof infrared spectrum, and it is also the most widely sampling techingues at present.It can be tested qualitatively or quantitatively, but requires minimal or no sample preparation.

Products

Specifications of Infrared Optical Germanium ATR Prism AR Coated Customized


Density(g*cm-3)5.33
Melting point(℃)936
Dielectric constant static/hyperframes16.6 @9.37GHZ(300K)
Thermal expansion coefficient(1/℃)6.1*10-6 @ 298K
Bulk modulus (Gpa)77.2
Shear modulus (Gpa)67
Thermal Conductivity   (J/k.m.s)58.61 @ 293K
Specific Heat(J/g.k)0.31
Knoop Hardness  (kg/mm²)780
Young's Modulus(Gpa)102.7
Poisson's Ratio0.28
Coefficient of elasticityC11 =129      C11 =48.3
C11 =67.1
Transmission wavelength2000nm—12000nm
Bulk Absorption Coefficient(1/cm)1.3*10-3@3800nm
3*10-2@10600nm
Thermo-optical  coeffecient,dn/dT  (1/k)4.08*10-4 @ 10600nm


Features of Infrared Optical Germanium ATR Prism AR Coated Customized

Infrared Transparency: High transmittance in the infrared spectrum.
Internal Reflection: Efficiently redirects and confines infrared light.
Durable: Resistant to mechanical stress and environmental factors.
Broad Spectral Range: Transmits from mid-IR to far-IR wavelengths.

Advantages of Infrared Optical Germanium ATR Prism AR Coated Customized

Advantages of Infrared Optical Germanium ATR Prism AR Coated Customized
  • Infrared Transparency: Germanium ATR prisms offer high transparency in the infrared spectrum, crucial for spectroscopy and sensing applications.

  • Internal Reflection: Efficiently redirects and confines infrared light, enhancing signal detection sensitivity.

  • Durable: Resistant to mechanical stress and environmental factors, ensuring long-lasting performance.

  • Broad Spectral Range: Transmits wavelengths from mid-IR to far-IR, suitable for various optical systems.
