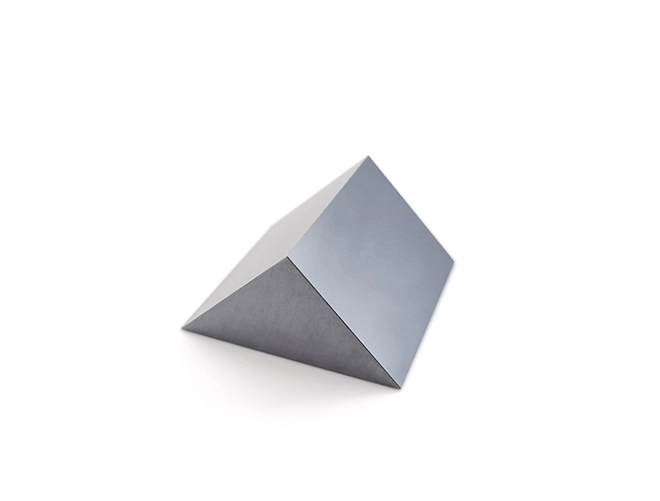

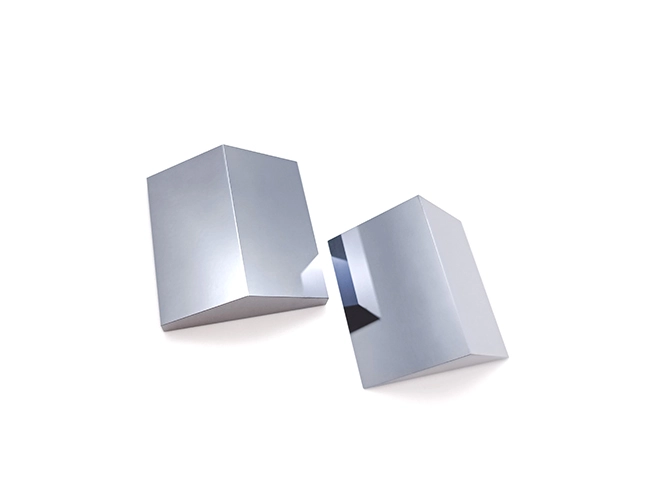

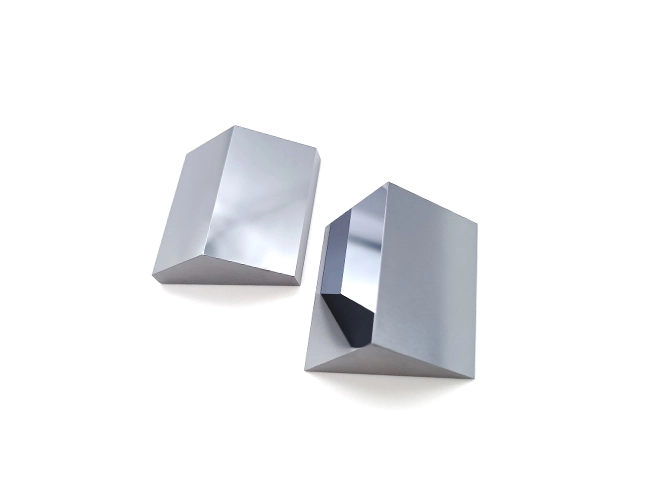

Enhance your optical setup with our Infrared Optical Silicon Right Angle Prism Coated Customized. Perfect for bending image paths or redirecting light at 90°, this prism offers versatility in image or beam displacement applications. Customized to your coating requirements, it guarantees precision and reliability in infrared optical systems. Trust in our right angle prism for seamless integration into your optical setup.
| Density(g*cm-3) | 2.33 |
| Melting point(℃) | 1420 |
| Dielectric constant | 13 @10GHZ |
| Thermal expansion coefficient(1/℃) | 4.15*10-6 |
| Bulk modulus (Gpa) | 102 |
| Shear modulus (Gpa) | 79.9 |
| Thermal Conductivity (J/k.m.s) | 163.3 @ 273K |
| Specific Heat(J/g.k) | 0.733 |
| Knoop Hardness (kg/mm²) | 1150 |
| Young's Modulus(Gpa) | 131 |
| Poisson's Ratio | 0.266 |
| Coefficient of elasticity | C11 =167 C11 =65 C11 =80 |
| Transmission wavelength | 1000nm-10000nm 30000nm-300000nm |
| Bulk Absorption Coefficient(1/cm) | 1.6*10-3 @ 3000.nm |
| Thermo-optical coeffecient,dn/dT (1/k) | 1.6*10-4 |
| Name | Index of Refraction (nd) | Abbe Number (vd) | Density(g/cm3) | CTE (x 10-6/°C) | dn/dT (x 10-6/°C) | Knoop Hardness | Properties /Typical Applications |
| Silicon (Si) | 3.422 | N/A | 2.33 | 2.55 | 1.60 | 1150 | Low Cost and Lightweight Used in Spectroscopy,MWIR Laser Systems,THz Imaging |
Precision Beam Control: Silicon right angle prisms offer precise 90-degree beam deviation, crucial for optical alignment and reflection applications.
Infrared Transparency: High transparency in the infrared spectrum enables use in thermal imaging and sensing applications.
Durable Construction: Resistant to mechanical stress and environmental factors, ensuring long-lasting performance.
Broad Spectral Range: Transmits wavelengths from UV to IR, suitable for diverse optical systems.
