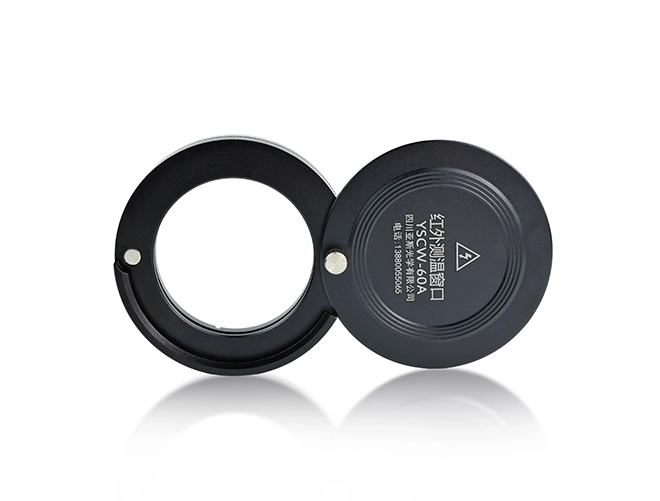

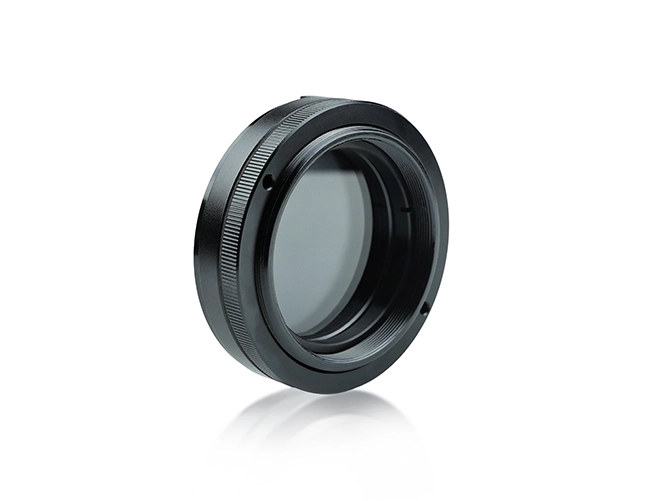

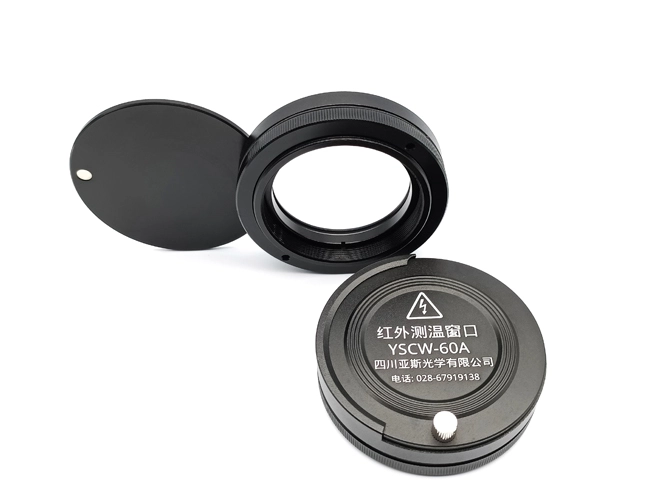

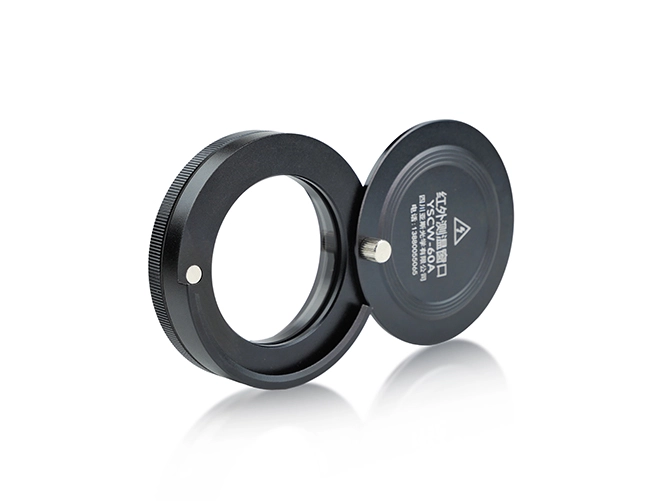

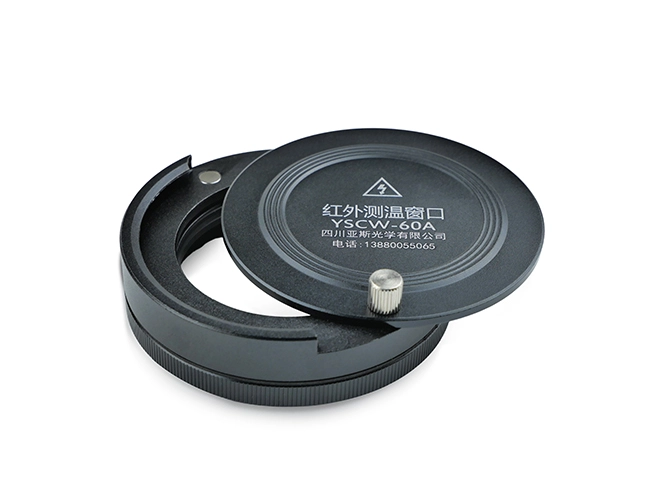

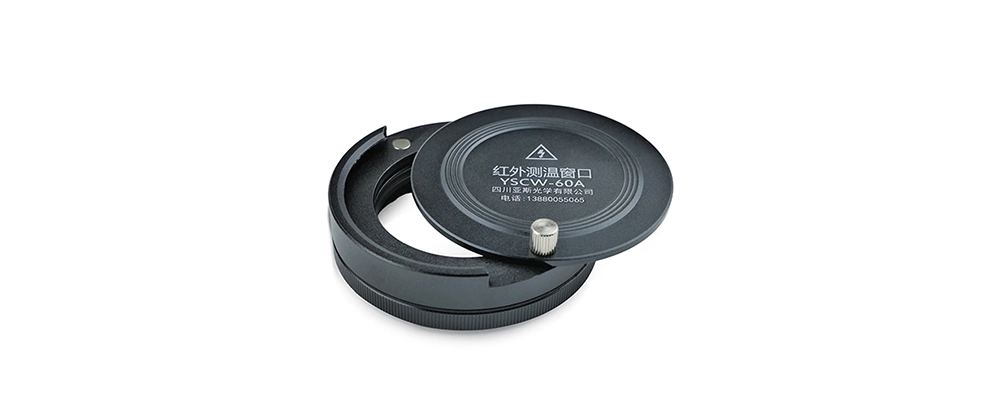

Infrared inspection window is an optical window which can pass through ultraviolet, visible and infraredrays.lt can be mounted on the shell of electricabinet. Infrared thermal imager and thermometer arerared Guidelines, the heating fault can be distinguishedwidely used in electric power system.
| Model no. | Material | Transmittance | Short time test of power- frequency withstand voltag | Optic Diameter | Required actual hole diameter | Life Span |
| YSCW-60A | Infrared composite crystal | ≥93% (0.15-14μm) | 1 5KV 1min | 60mm | 71 mm | >10years |
| YSCW- 75A | Infrared composite crystal | ≥93% (0.15-1 4μm) | 15KV 1min | 75mm | 86mm | > 10 years |
| YSCW-80A | Infrared composite crystal | ≥93% (0.15-14μm) | 15KV 1min | 80mm | 86mm | > 10 years |
| YSCW-88A | Infrared composite crystal | ≥93% (0.15-14μm) | 15KV1min | 88mm | 97mm | > 10 years |
| YSCW-100A | Infrared composite crystal | ≥93% (0.15-1 4μm) | 15KV 1min | 100mm | 111mm | > 10 years |
| YSCW-120A | Infrared composite crystal | ≥93% (0.15-14μm) | 15KV 1min | 120mm | 131 mm | > 10 years |
Infrared Transparency: The window allows for clear viewing in the infrared spectrum, crucial for thermal inspections.
Thermal Resistance: Withstands high temperatures, enabling use in demanding thermal environments.
Durable Construction: Resistant to mechanical stress and environmental factors, ensuring long-term reliability.
Enhanced Safety: Allows for safe and accurate infrared inspections, protecting equipment and personnel.
