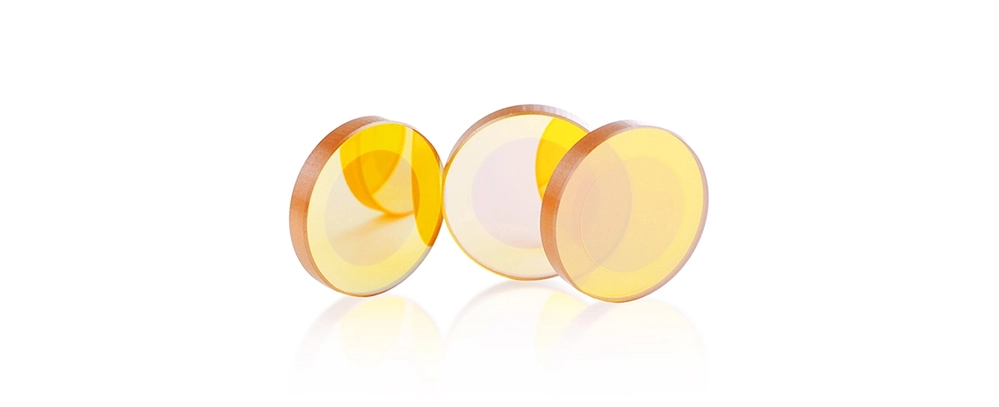

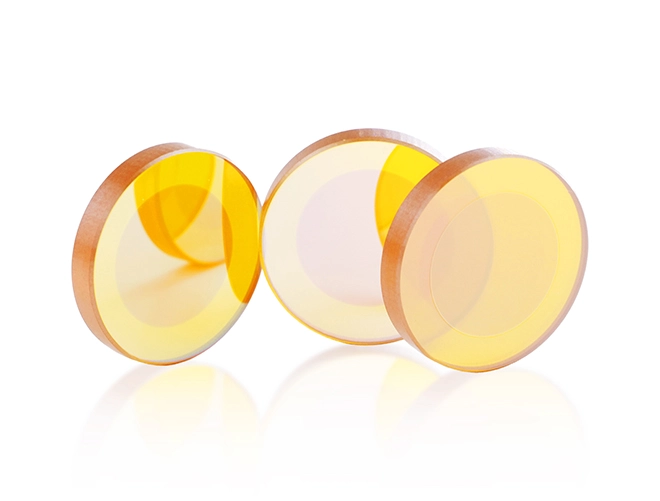

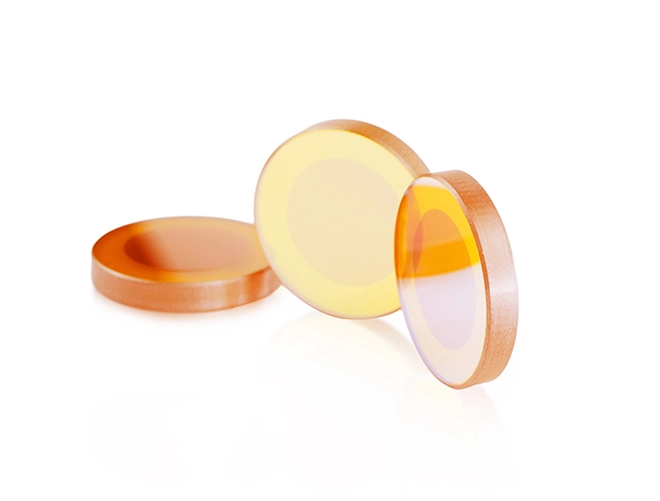

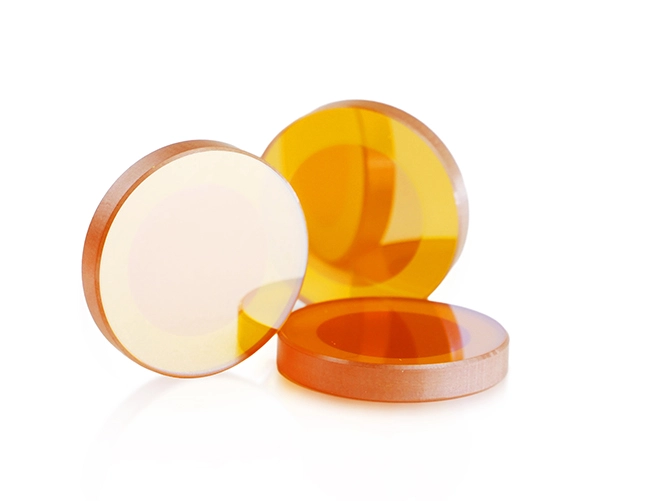

Output Coupler

Name: Output Coupler
Brand: Sichuan Yasi Optics Co.,Ltd.

High-quality output coupler for precise laser beam output control.

Products

Specifications of Output Coupler

Reflectivity	Specification	Remark
R=40%±2%	Φ12.72.5 Φ153 Φ203 Φ253 Φ30*3	Customized size can be fabricated according to the drawings and samples
R=50%±2%
R=60%±2%
R=80%±2%
R=85%±2%
R=90%±2%

Technical Requirement	Tolerance
Size range	10~ 40mm
Diameter tolerance	±0/-0.05mm
Thickness tolerance	±0.05mm
Angle tolerance	±1''~ +10"
Surface quality	40- -20
Surface accuracy	λ10 per @633nm
Bevelling	0.1-0.5mm

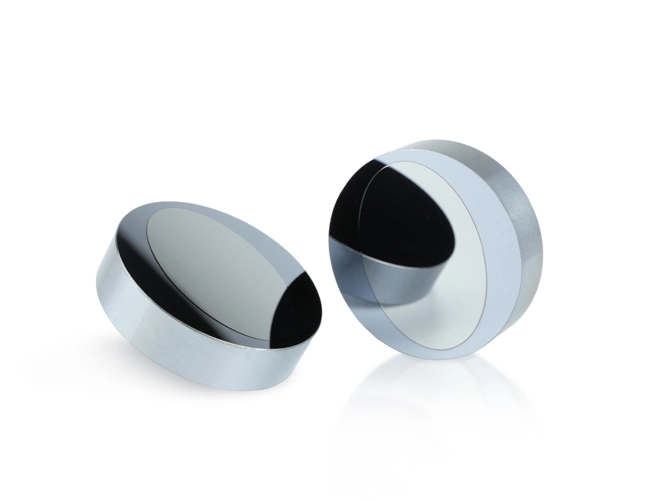

Substrate	CVD Znse, Germanium or other infrared optical material



Beam Output Control: Regulates laser beam output for precision.



High Reflectivity: Efficiently reflects laser light for optimal performance.



Durable: Resistant to mechanical stress and environmental factors.



Broad Compatibility: Compatible with various laser systems and wavelengths.

Precise Beam Control: Output couplers regulate laser beam output, ensuring precise and consistent performance.
Efficient Reflection: High reflectivity minimizes energy loss, maximizing laser power utilization.
Longevity: Durable construction withstands mechanical stress and environmental factors, ensuring long-term reliability.
Compatibility: Compatible with various laser systems and wavelengths, offering versatility for different applications.
