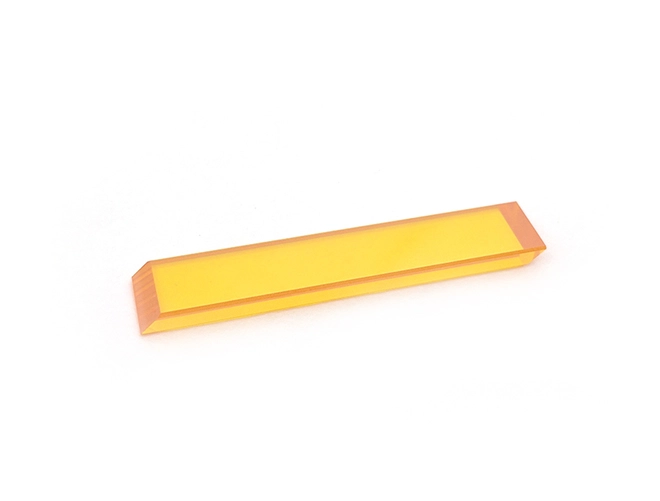

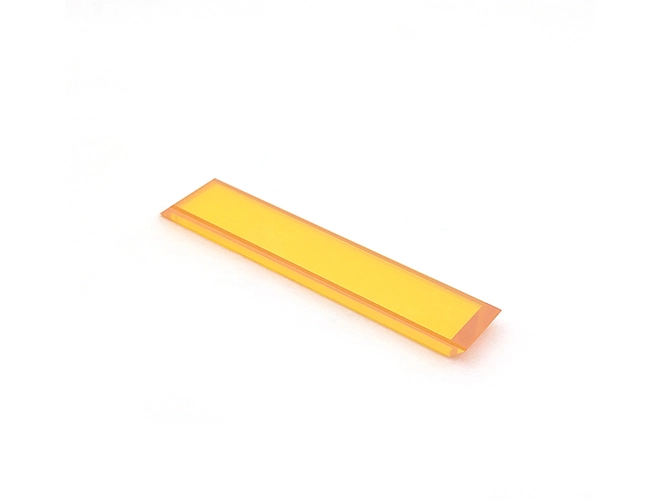

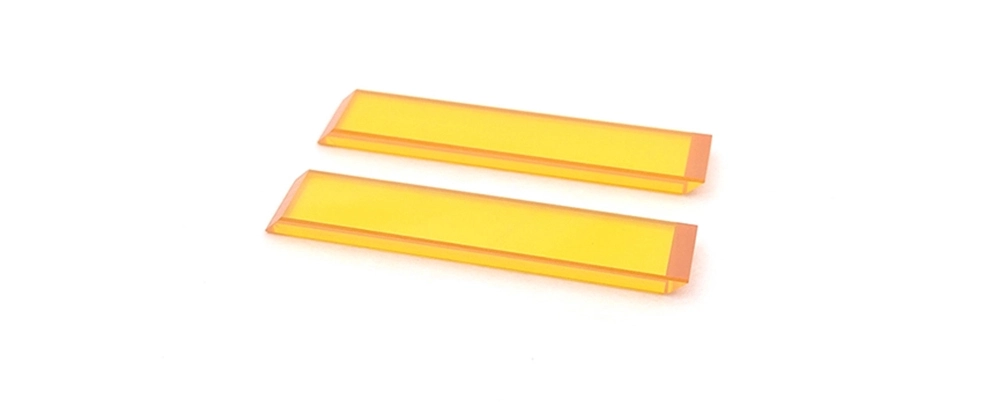

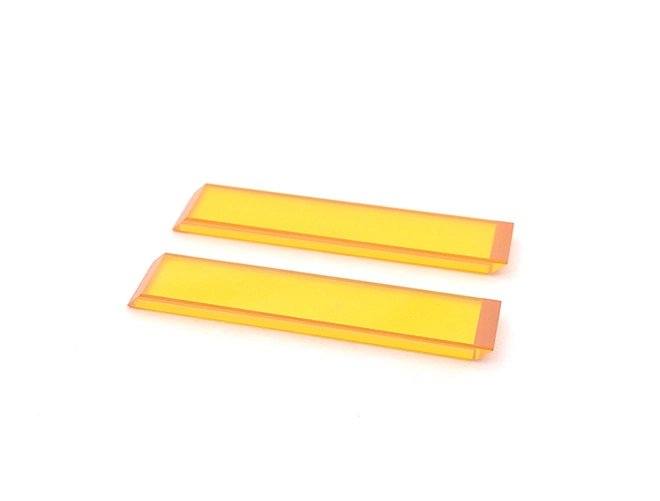

Infrared Optical ZnSe ATR Prism Coated Customized

Leveraging laser absorption spectrum technology, this prism offers rapid and efficient sampling without the need for extensive sample preparation. Customized to your specifications, it ensures precise results in a wide range of infrared spectroscopy applications. Experience the future of infrared analysis with our tailored ATR prism solution.

Products

Specifications of Infrared Optical ZnSe ATR Prism Coated Customized


NameIndex of Refraction (nd)Abbe Number (vd)Density(g/cm3)CTE
(x 10-6/°C)
dn/dT
(x 10-6/°C)
Knoop HardnessProperties /Typical Applications
Zinc Selenide(ZnSe)2.403N/A5.277.161120Low Absorption,High Resistance to Thermal Shock
CO2 Laser Systems and Thermal lmaging
Technical
Requirement
Commercial GradePrecision GradeHigh Precision
Size range1-600mm2-600mm2-600mm
Dimensional
tolerance
±0.1mm±0.025mm±0.01 mm
Thickness
tolerance
±0.1mm±0.025mm±0.01mm
Parallelism±3’±15''±5''
Surface quality60-4040- 2020-10
Surface accuracy1.0λλ10λ/20
CoatingAR/AR 7-12μm /10.6μm /2-13um
Bevelling0.1 -0.5mm*45°
SubstrateCVD Znse
Length(mm)Width(mm)Thickness(mm)AngleRemark
4214245
5020245
5220245
5220245
6012445
6810645


Features of Infrared Optical ZnSe ATR Prism Coated Customized

Infrared Transparency: High transmittance in the infrared spectrum.
Internal Reflection: Efficiently redirects and confines infrared light.
Durable: Resistant to mechanical stress and environmental factors.
Broad Spectral Range: Transmits from mid-IR to far-IR wavelengths.

Advantages of Infrared Optical ZnSe ATR Prism Coated Customized

Advantages of Infrared Optical ZnSe ATR Prism Coated Customized
  • Efficient Light Confinement: ZnSe ATR prisms efficiently redirect and confine infrared light, enhancing signal detection sensitivity in spectroscopy and sensing applications.

  • Infrared Transparency: High transparency in the infrared spectrum enables precise thermal imaging and sensing.

  • Durable: Resistant to mechanical stress and environmental factors, ensuring long-lasting performance.

  • Broad Spectral Range: Transmits wavelengths from mid-IR to far-IR, suitable for diverse optical applications.
