Applicable to infrared imaging, monitoring, infrared inspection, telemetry, and infrared spectroscopic optical systems.
As a classification of Germanium window, these products not only improve the light transmittance of Germanium windows, but also enhance their durability and resistance to environmental influences.

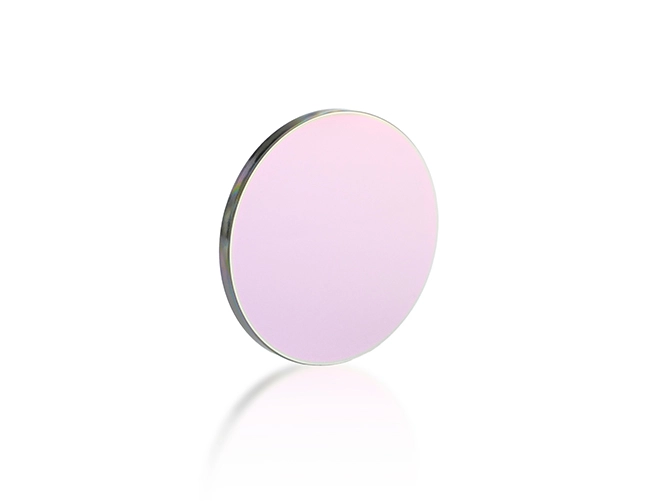

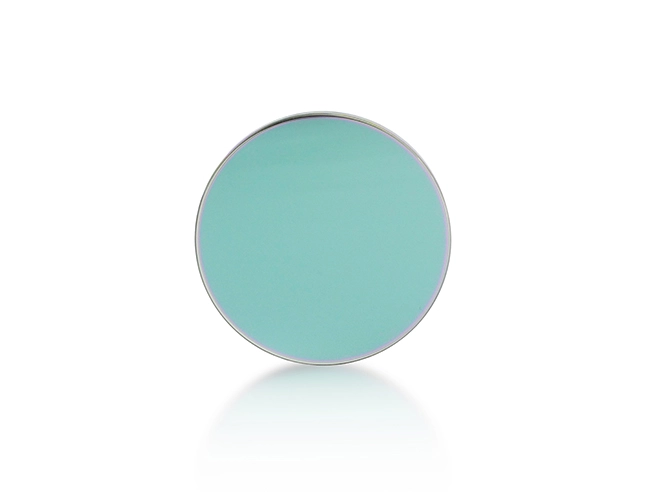

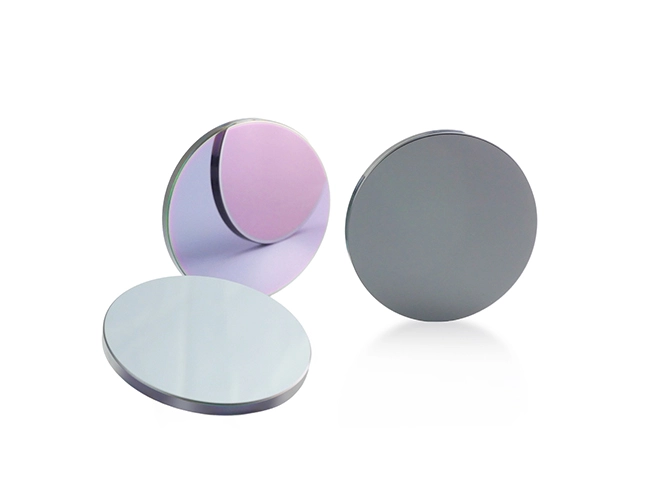

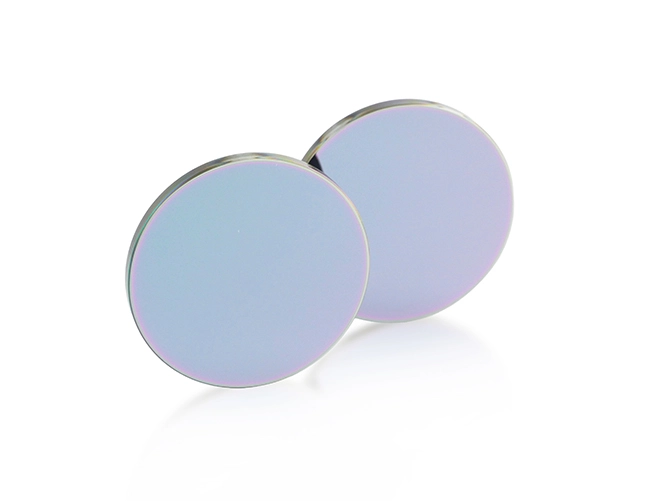

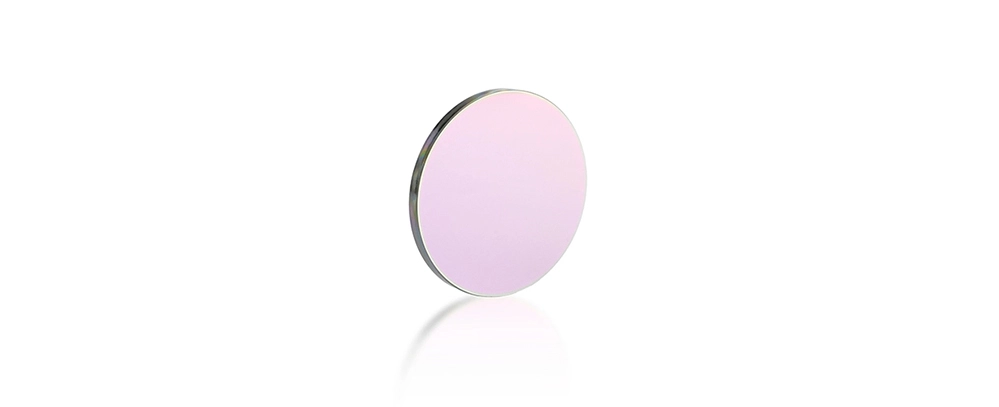

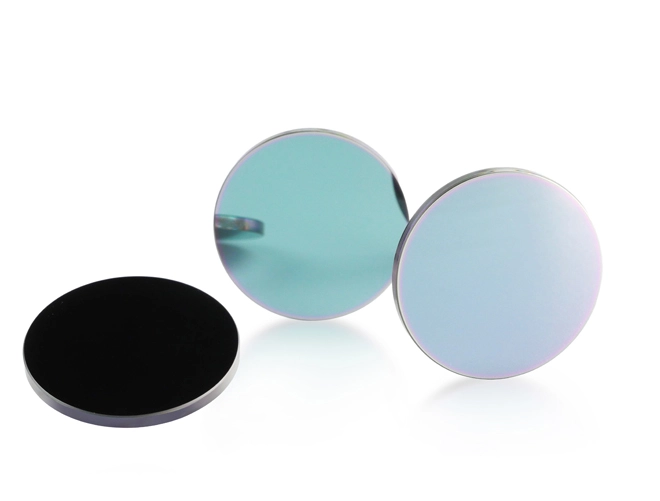

Crafted from high-purity germanium, this window excels in IR transparency and is ideal for thermal imaging and IR spectroscopy. Each window is customized to your specifications and available with AR/AR (anti-reflective) or AR/DLC (diamond-like carbon) coatings. These coatings enhance durability, minimize reflection, and improve transmission efficiency. Perfect for demanding environments, our germanium windows offer exceptional performance and reliability. Trust our expertise to provide tailored infrared optical solutions that meet the highest industry standards.
| Density(g*cm-3) | 5.33 |
| Melting point(℃) | 936 |
| Dielectric constant static/hyperframes | 16.6 @9.37GHZ(300K) |
| Thermal expansion coefficient(1/℃) | 6.1*10-6 @ 298K |
| Bulk modulus (Gpa) | 77.2 |
| Shear modulus (Gpa) | 67 |
| Thermal Conductivity (J/k.m.s) | 58.61 @ 293K |
| Specific Heat(J/g.k) | 0.31 |
| Knoop Hardness (kg/mm²) | 780 |
| Young's Modulus(Gpa) | 102.7 |
| Poisson's Ratio | 0.28 |
| Coefficient of elasticity | C11 =129 C11 =48.3 C11 =67.1 |
| Transmission wavelength | 2000nm—12000nm |
| Bulk Absorption Coefficient(1/cm) | 1.3*10-3@3800nm 3*10-2@10600nm |
| Thermo-optical coeffecient,dn/dT (1/k) | 4.08*10-4 @ 10600nm |
| Diameter(mm) | Thickness(mm ) | Coating | Diameter(mm) | Thickness(mm) |
| 10 | 1 | AR/AR OR AR/DLC 3-5μm OR 8-12μm AR, <2% per Surface - | 75 | 3 |
| 12.5 | 1 | 75 | 5 | |
| 20 | 2 | 76.2 | 6 | |
| 25 | 3 | 80 | 8 | |
| 30 | 3 | 90 | 10 | |
| 38.1 | 3 | 100 | 10 | |
| 40 | 4 | 150 | 15 | |
| 50 | 3 | 180 | 18 | |
| 50.8 | 3 | 200 | 20 | |
| 63.5 | 5 | 300 | 35 |
Infrared Transparency: Germanium windows offer exceptional transparency in the infrared spectrum, crucial for thermal imaging and sensing applications.
High Thermal Conductivity: Ensures efficient heat dissipation, maintaining optical performance in high-temperature environments.
Durable: Resistant to mechanical stress and harsh environmental conditions, ensuring long-term reliability.
Broad Spectral Range: Transmits wavelengths from mid-IR to far-IR, suitable for various optical systems.
