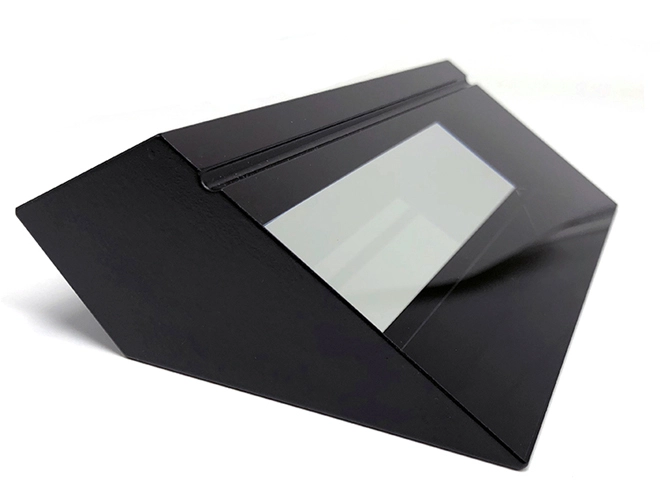

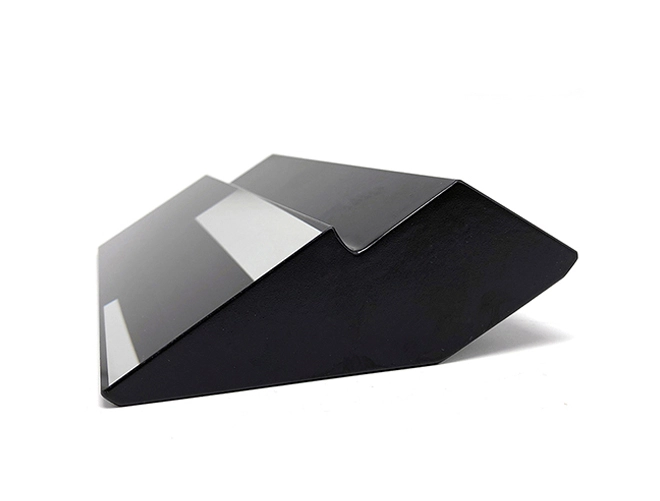

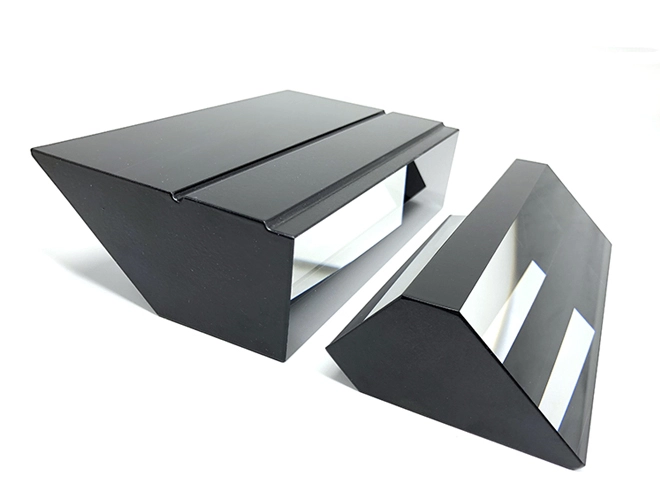

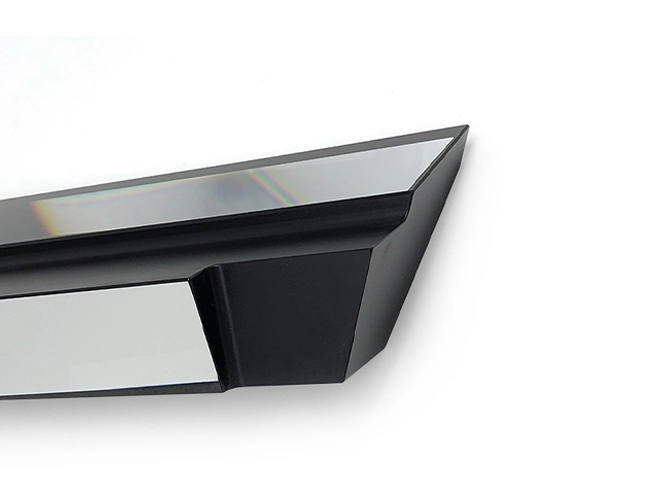

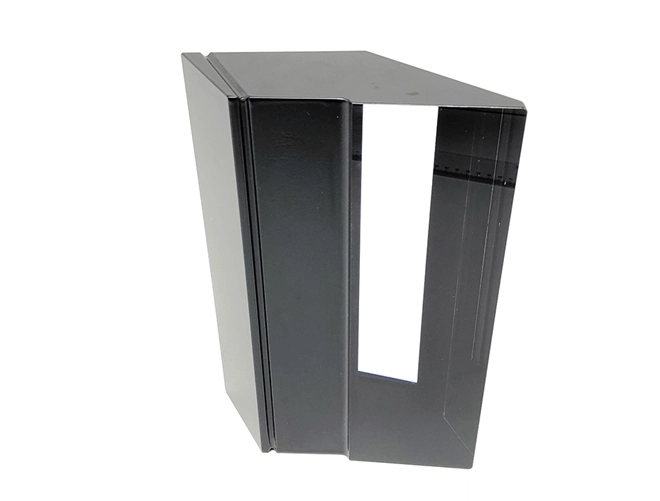

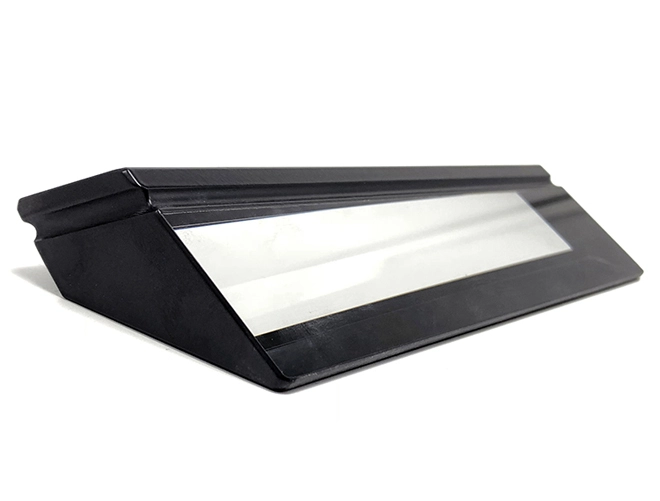

Periscope Prism: Reflects light at 90-degree angles, enabling observation or sighting around obstacles with precision and clarity.
Its large size and M17 specifications make it ideal for a wide range of applications, from military and defense to surveillance and navigation systems. Customized to your exact requirements, including coating specifications, our periscope prism guarantees superior performance and reliability in enabling observation or sighting around obstacles with unparalleled precision and clarity. Elevate your optical setup with our tailored periscope prism solution today.
| Technical Requirement | Commercial Grade | Precision Grade | High Precision |
| Size range | 100-600mm | 100-600mm | 100-600mm |
| Diameter tolerance | ±0.1mm | ±0.025mm | ±0.01mm |
| Thickness tolerance | ±0.1mm | ±0.025mm | ±0.01mm |
| Angle tolerance | ±10′ | ±1'' | ±30' |
| Surface quality | 60-40 | 40-20 | 20-10 |
| Surface accuracy | 2.0λ | λ/10 | λ/20 |
| Bevelling | 0.1-0.5mm*45° | ||
| Substrate | K9 / Fused silica or other optical glass | ||

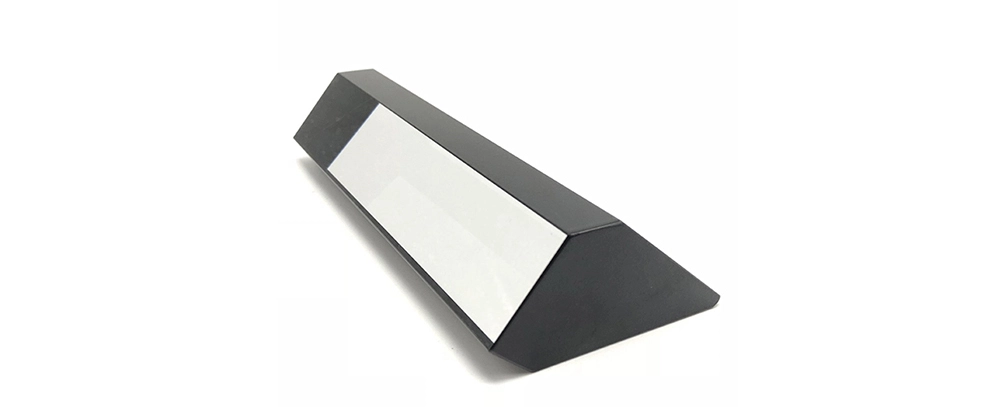

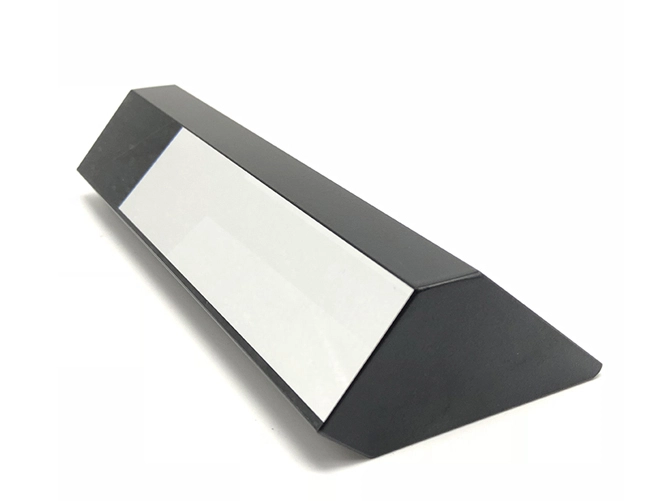

Wide Field of View: The large size of the M17 Periscope Prism provides a broad field of view, enhancing situational awareness.
Superior Optical Clarity: The prism offers excellent clarity, ensuring clear observation and target acquisition.
Durable Construction: Built to withstand rugged conditions, ensuring long-term reliability.
Enhanced Performance: The prism's anti-reflective coating minimizes glare, improving visibility in bright environments.
