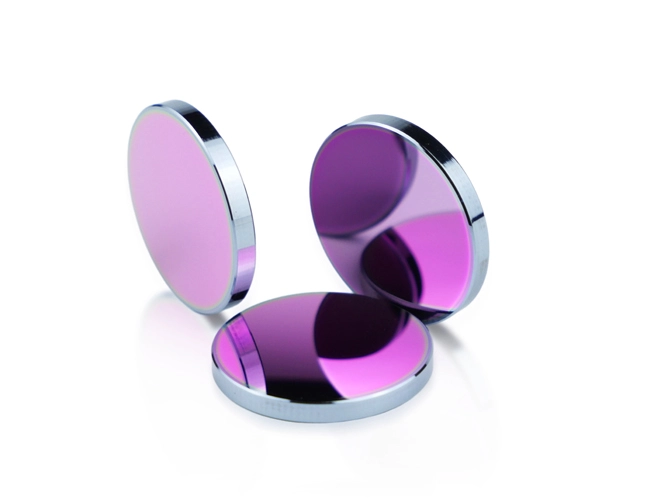

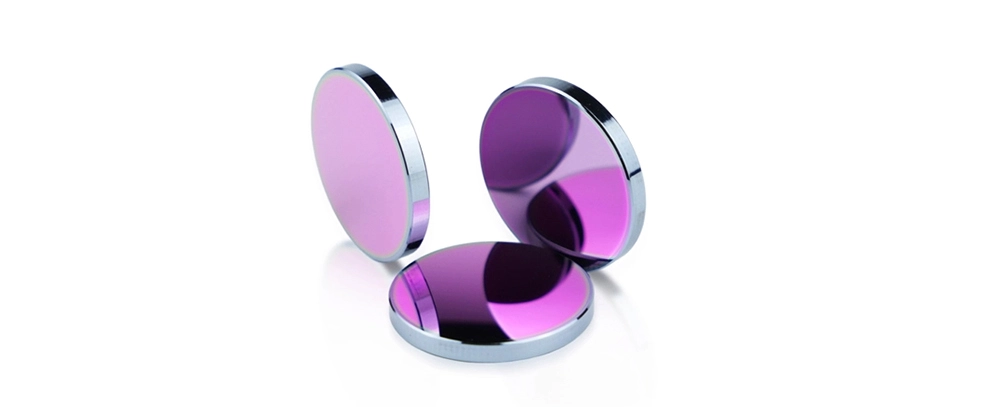

Applicable in optical systems such as infrared imaging, monitoring, inspection, telemetry, and infrared spectroscope applications, these components are developed with advanced china optics manufacturing standards to ensure stable performance and precision. Standard sizes are available, and customized dimensions can also be supported to meet specific project requirements. For available sizes or custom specifications, please contact our sales team for further inquiry.
| Technical Requirement | Commercial Grade | Precision Grade | High Precision |
| Size range | 1-600mm | 2-600mm | 2-600mm |
| Diameter tolerance | ±0.1mm | ±0.025mm | ±0.01mm |
| Thickness tolerance | ±0.1mm | ±0.025mm | ±0.01mm |
| Angle tolerance | ±3′' | ±1'' | ±30'' |
| Surface quality | 60-40 | 40-20 | 20-10 |
| Surface accuracy | 1.0λ | λ/10 | λ/20 |
| Coating | 3 -5um OR 8-12um AR,<5% per Surface | ||
| Bevelling | 0.1-0.5mm*45° | ||
| Substrate | GaAs or other infrared optical material | ||
| Diameter(mm) | Focal length ( mm) | wavelength um | Edge thickness(mm) |
| 12 | 25.4/38.1/41/50.8/63.5/76.2/88.9/100/101.6 | 8-12 | 2 |
| 18 | 8-12 | 2 | |
| 1 9.05 | 8-12 | 2 | |
| 20 | 8-12 | 2 | |
| 25 | 8-12 | 3 | |
| 25.4 | 8-12 | 3 | |
| 30 | 8-12 | 6 | |
| 38.1 | 8-12 | 7.8 |
Infrared Transparency: GaAs lens offer high transparency in the infrared spectrum, crucial for IR imaging and sensing applications.
Precision Optics: Provides accurate focusing and imaging, ensuring high-quality optical performance.
Durable Construction: Resistant to mechanical stress and environmental factors, ensuring long-term reliability.
Broad Spectral Range: Transmits wavelengths from near-IR to far-IR, suitable for diverse optical systems.
